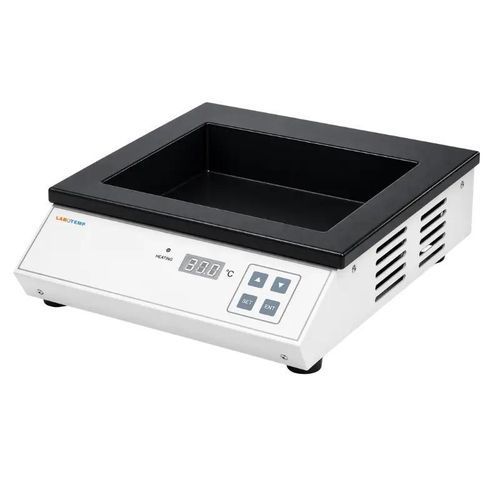

Histopathology water bath LTB-101

for histological sectionsfor scientific researchtissue

Product Overview
Labotemp Tissue Flotation Bath LTB-101 is a precision laboratory bath designed for controlled stretching and flattening of paraffin-embedded tissue sections in histology and pathology workflows. The unit delivers stable, uniform heating up to 100°C to allow tissue sections to expand and lie flat without distortion prior to slide mounting. A digital LED display shows both set and actual temperatures for accurate monitoring and reproducible results. The black anodized bath surface improves contrast for easier handling of sections. Constructed with a durable steel housing and an optimized glass bath, the LTB-101 provides efficient heat distribution and consistent daily performance.

Key Features

• Digital LED temperature control displaying set and actual values
• Uniform heating across the glass bath for consistent section preparation
• Thermostatic design for stable operation with minimal fluctuation
• Compact footprint for limited laboratory bench space
• Low power consumption: 300 W
• Optimized glass bath dimensions for ergonomic sample handling
• Lightweight (≈3.5 kg) for easy repositioning
• Protective ventilated housing for improved heat dissipation

Applications

• Stretching and flattening paraffin tissue sections prior to slide mounting in histology and pathology labs
• Routine diagnostic preparation, biopsy processing and research workflows requiring controlled heating and clear visibility of sections
• Suitable for hospitals, clinical laboratories and academic research facilities

Specifications
Temperature Range : Room temp. to 100°C
Voltage : AC 230V/50Hz; AC 120V/60Hz
Recommended Working Environment : 5°C – 40°C
Power : 300 W
Relative Humidity : < 80%
Product Size (mm) : L310 × W380 × H105
Glass Bath Size (mm) : L230 × W180 × H53
Packing Size (mm) : 420 × 380 × 200
Net Weight : 3.5 kg
Gross Weight : 4.5 kg

Technical specifications

• Temperature Range: Room temp. to 100°C
• Voltage: AC 230V/50Hz; AC 120V/60Hz
• Recommended Working Environment: 5°C – 40°C
• Power Consumption: 300 W
• Relative Humidity: < 80%
• Product Dimensions (mm): L310 × W380 × H105
• Glass Bath Dimensions (mm): L230 × W180 × H53
• Packing Size (mm): 420 × 380 × 200
• Net Weight: 3.5 kg
• Gross Weight: 4.5 kg
• Digital LED display showing set and actual temperatures
• Black anodized bath surface for improved contrast
• Durable steel body with optimized glass bath for efficient heat distribution
