Histopathology water bath LTB-102

for the pharmaceutical industryfor teachingfor scientific research

Product Overview

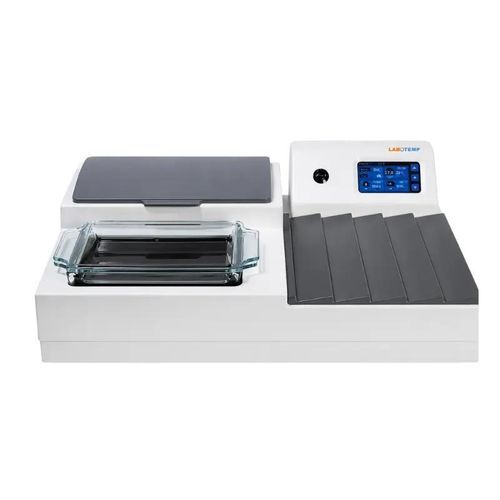

Labotemp Histology Tissue Water Bath with Slide Dryer LTB-102 combines a tissue water bath, slide dryer and baking oven into a compact benchtop workstation. Designed for histopathology laboratories, hospitals, medical colleges, research institutes and diagnostic centres, it provides independent temperature control for each zone (adjustable 0°C–75°C). The 2.5 L water bath gently flattens paraffin sections before mounting, while the integrated slide dryer handles up to 60 microscope slides for efficient drying and baking. Precision temperature control maintains ±1°C accuracy to ensure consistent sample preparation.

Key Benefits

• 3-in-1 benchtop workstation integrating water bath, slide dryer and oven
• Independent three-zone temperature control for water bath, dryer and oven
• High throughput: accommodates up to 60 microscope slides
• Precise temperature control (±1°C) with dual over-temperature protection
• Programmable LCD touch screen with scheduling up to one week and countdown reminders
• Integrated adjustable LED illumination to improve visibility during tissue handling

Features

• Independent temperature control for the water bath, dryer and oven
• 2.5 L water bath for tissue section floating and flattening
• Slide drying platform for up to 60 microscope slides
• LCD touch screen for simple operation and monitoring
• Programmable timer with start/stop scheduling for up to one week
• Dual over-temperature protection (software and hardware)
• Uniform heating for consistent drying and baking
• Bottom LED illumination with adjustable brightness

Applications

• Histopathology laboratories
  Supports tissue floating, drying and baking for reliable histological sample preparation
• Hospitals & Diagnostic Centres
  Enables efficient preparation of pathology slides for routine clinical diagnostics
• Medical colleges & universities
  Suitable for hands-on teaching in histology and pathology courses
• Research institutes
  Provides controlled heating for tissue processing in biomedical and translational research
• Pharmaceutical & biotechnology
  Assists sample preparation for preclinical studies and quality control
• Food testing laboratories
  Useful for preparing biological specimens for microscopic examination in food safety testing

Technical Specifications

• Water bath temperature range: 0°C – 75°C (0°C – 99°C optional)
• Slide dryer temperature range: 0°C – 75°C (0°C – 99°C optional)
• Oven temperature range: 0°C – 75°C (0°C – 99°C optional)
• Temperature accuracy: ±1°C
• Timing range: programmable up to 1 week
• Working temperature (environment): 0°C – 40°C
• Operating humidity: ≤80% RH
• Power supply: AC 220V ±10%, 50Hz
• Power consumption: 600 VA
• Fuse rating: 10 A
• Slide capacity: up to 60 slides
• Tissue water bath capacity: 2.5 L
• Display: LCD touch screen
• Control system: independent three-zone temperature control
• Lighting: bottom LED illumination with adjustable brightness
• Overall dimensions: 570 × 430 × 180 mm
• Water bath tank size: 210 × 170 × 55 mm
• Net weight: 14 kg
• Gross weight: 20 kg
• Package size: 640 × 500 × 250 mm
