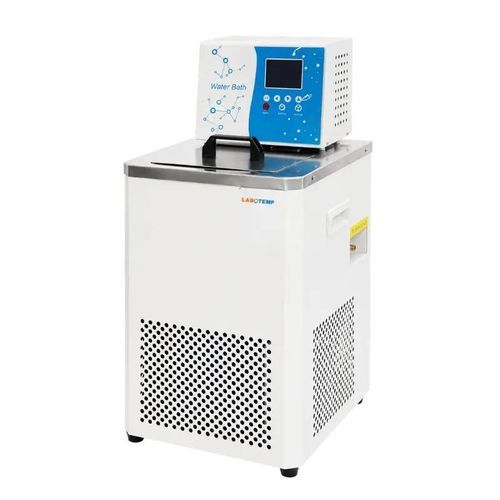

Circulating water bath LCB-102

for calibrationfor the pharmaceutical industryfor scientific research

Product overview
Labotemp LCB-102 is a refrigerated circulating bath for precise temperature control in laboratory heating and cooling processes. It features a 15 L stainless steel tank, temperature range −10°C to 100°C, 0.01°C resolution and ±0.05°C stability. The unit includes a built-in compressor, concealed stainless-steel cooling coil, digital PID controller with PT100 sensor and an integrated circulation pump delivering 6 L/min for uniform temperature distribution and support of external circulation.

Design & Operation
Engineered for continuous laboratory use, the LCB-102 provides over-temperature protection, automatic temperature correction, timer functions and a drain valve for maintenance. PID digital control with PT100 sensing ensures accurate regulation. Corrosion-resistant construction, compressor refrigeration and an anti-slip base support stable, energy-efficient operation in pharmaceutical, chemical, biotechnology and research environments.

Why choose LCB-102

• Wide working range: −10°C to 100°C for both heating and cooling tasks
• High-precision control: 0.01°C resolution and ±0.05°C stability with PT100 and PID regulation
• Space-efficient refrigeration: built-in compressor and concealed coil maximize usable tank volume
• Integrated 6 L/min pump to ensure uniform bath temperature and enable external circulation

Features

• Built-in compressor for rapid and continuous cooling
• Concealed stainless-steel cooling coil to preserve tank usable area
• Microprocessor PID controller with PT100 sensor
• Integrated circulation pump (6 L/min) supporting external circuits
• Over-temperature protection and fault alarm
• Drain valve for convenient maintenance
• Compact corrosion-resistant stainless-steel construction with anti-slip base

Applications

• Precision temperature control for pharmaceutical, chemical, biotechnology and academic research laboratories
• Sample conditioning, chemical synthesis, reaction studies, material testing, viscosity measurements and instrument calibration
• External circulation for reactors, condensers and analytical equipment requiring stable temperatures

Technical specifications

• Tank volume: 15 L
• Temperature range: −10°C to 100°C
• Power supply: 220V 50Hz
• Temperature resolution: 0.01°C
• Temperature stability: ±0.05°C
• Power: 2.2 kW
• Tank opening (slot): 250 × 160 mm
• Tank groove depth: 200 mm
• Lift (head): 1.4 m
• Pump flow rate: 6 L/min
• Overall dimensions: 320 × 370 × 765 mm
• Net weight: 40 kg
• Gross weight: 45 kg
• Packing size: 540 × 470 × 980 mm
