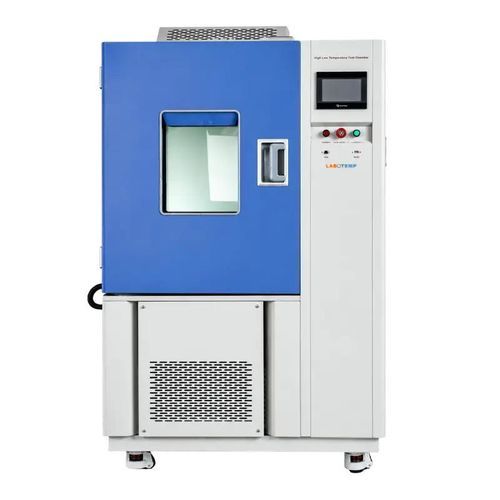

Thermostatic test chamber LCC-102

climatictemperaturelighting

Product overview
Labotemp Thermal Cyclic Chamber LCC-102 is a high-performance environmental test chamber engineered for rapid temperature change and thermal cycling applications in electronics, automotive, aerospace, R&D and quality control laboratories. Designed for Environmental Stress Screening (ESS), the LCC-102 provides precise, repeatable temperature transitions to evaluate material durability, product reliability and component performance under accelerated conditions. The chamber offers a 225 L internal volume and selectable temperature ranges up to -70°C to +150°C (options available), suitable for testing electronic assemblies, batteries, polymers and industrial materials.

Control and safety / Operation
The system includes a programmable color LCD touchscreen controller, Ethernet connectivity and PC link for monitoring and data management. It maintains stable test conditions with ±0.5°C fluctuation and controlled heating/cooling rates of 5°C/min for consistent thermal cycling. A mechanical compression refrigeration system ensures energy-efficient operation, while integrated protections (over-temperature, over-current, refrigerant high-pressure, earth leakage) improve safety during continuous use.

Key highlights

• 225 L chamber capacity for medium-scale environmental testing.
• Heating and cooling rate: 5°C/min to support ESS and repeatable cycles.
• Advanced multi-point safety protections for reliable long-term operation.

Features

• Rapid ESS testing capability for accelerated stress screening.
• Protective-coated steel exterior for structural resistance.
• Robust cabinet design minimizes vibration and improves stability.
• Precision-engineered chamber delivers repeatable test conditions for quality assurance.
• High accuracy: ±0.5°C fluctuation, ±2.0°C deviation.
• Comprehensive safety protections: over-temperature, over-current, refrigerant high-pressure, earth leakage.
• Integrated internal lighting for sample visibility.
• Built-in internal drain for easy cleaning and maintenance.
• Ethernet and PC communication for data logging and remote operation.
• Heavy-duty construction for stable performance under intensive testing.
• Well-insulated chamber to reduce heat loss and improve energy efficiency.

Applications

• Environmental Stress Screening: Performs rapid thermal cycling to detect early-life failures and improve product reliability.
• Electronics & Battery Testing: Evaluates assemblies, batteries, sensors and components under repeated temperature transitions.
• Automotive & Aerospace Validation: Simulates extreme thermal conditions to verify durability and performance of critical components.
• Material Testing: Assesses thermal stability, expansion/contraction and fatigue resistance of engineering materials.
• Research & Development: Supports environmental simulation, product development and accelerated life testing.
• Quality Control: Verifies product consistency and compliance with reliability/performance standards prior to production.

Technical specifications (table)
Temperature Performance
Temperature Range: -20°C to +150°C (Optional -40°C to +150°C, -70°C to +150°C)
Power Supply: 380V / 220V 50Hz
Temperature Fluctuation: ±0.5°C
Temperature Deviation: ±2.0°C
Cooling Rate: 5°C/min
Heating Rate: 5°C/min

Control, Safety
Cooling System: Mechanical Compression Refrigeration System
Controller: Programmable Color LCD Touch Screen Controller with Ethernet Connection and PC Link
Safety Device: Over-Temperature Protection, Over-Current Protection, Refrigerant High-Pressure Protection, Earth Leakage Protection
Exterior Material: Steel Plate with Protective Coating
Interior Material: SUS304 Stainless Steel

Dimension & Shipping
Internal Dimensions (W × D × H): 500 × 600 × 750 mm
Overall Dimensions (W × D × H): 1000 × 1140 × 1870 mm
Interior Volume: 225 L
Heat Load: 1000 W
Net Weight: 395 kg
Gross Weight: 501 kg
Package Size: 1270 × 1180 × 2120 mm

Technical specifications

• Model: LCC-102
• Chamber capacity (interior volume): 225 L
• Temperature range: -20°C to +150°C (optional -40°C to +150°C, -70°C to +150°C)
• Temperature fluctuation: ±0.5°C
• Temperature deviation: ±2.0°C
• Heating rate: 5°C/min
• Cooling rate: 5°C/min
• Cooling system type: Mechanical Compression Refrigeration System
• Controller: Programmable color LCD touchscreen with Ethernet and PC link
• Safety protections: Over-temperature, Over-current, Refrigerant high-pressure, Earth leakage
• Exterior material: Steel plate with protective coating
• Interior material: SUS304 stainless steel
• Internal dimensions (W×D×H): 500 × 600 × 750 mm
• Overall dimensions (W×D×H): 1000 × 1140 × 1870 mm
• Heat load: 1000 W
• Net weight: 395 kg
• Gross weight: 501 kg
• Package size: 1270 × 1180 × 2120 mm
