Thermostatic test chamber LCC-104
temperaturethermal shockfor rapid temperature cycling

Thermostatic test chamber - LCC-104 - Labotemp Systems - temperature / thermal shock / for rapid temperature cycling

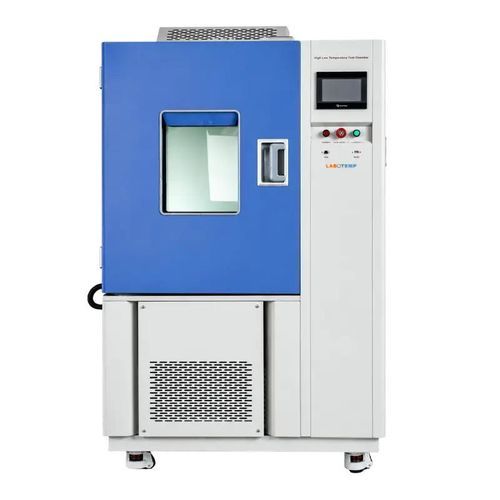

Thermostatic test chamber - LCC-104 - Labotemp Systems - temperature / thermal shock / for rapid temperature cycling
Thermostatic test chamber - LCC-104 - Labotemp Systems - temperature / thermal shock / for rapid temperature cycling - image - 2
Thermostatic test chamber - LCC-104 - Labotemp Systems - temperature / thermal shock / for rapid temperature cycling - image - 3
Add to favorites
Compare this product

Characteristics

Type
thermostatic
Controlled parameter
temperature
Test type
for rapid temperature cycling, temperature stability, thermal shock
Applications
laboratory, for quality control, for materials testing, for cyclical applications
Configuration
floor-standing
Protection level
corrosion-resistant
Number of doors
1-door
Chamber material
stainless steel
Other characteristics
for high temperatures, low-temperature, accelerated, high-performance, high-capacity, thermal
Capacity

1,000 l
(264.2 gal)

Temperature range

Max.: 150 °C
(302 °F)

Min.: -20 °C
(-4 °F)

Power

1,000 W

Interior length

1,000 mm
(39.37 in)

Interior height

1,000 mm
(39.37 in)

Interior depth

1,500 mm
(59.06 in)

External length

1,500 mm
(59.06 in)

External height

2,140 mm
(84.25 in)

External depth

1,540 mm
(60.63 in)

Description

Overview
Labotemp Thermal Cycling Chamber LCC-104 is a 1000 L environmental test chamber for accelerated thermal cycling and large-volume reliability testing of industrial products, electronic systems, automotive assemblies and aerospace components. It reproduces rapid temperature transitions to assess thermal endurance, dimensional stability and long-term performance under controlled conditions.

Control & Performance Highlights
Equipped with a programmable color LCD touchscreen controller with Ethernet and PC Link for precise profile configuration and remote data logging. Temperature deviation is maintained at ±2.0°C with fluctuation ±0.5°C. Heating and cooling rates up to 5°C/min are supported by a mechanical compression refrigeration system. Multiple safety protections enable secure long-duration operation.

Key Benefits
  • 1000 L chamber volume for oversized samples and batch testing
  • Ethernet and PC Link connectivity for remote control and data acquisition
  • Multi-level safety protections for continuous testing


Specifications
  • Model: LCC-104
  • Temperature range: -20°C to +150°C (optional -40°C to +150°C, -70°C to +150°C)
  • Temperature fluctuation: ±0.5°C
  • Temperature deviation: ±2.0°C
  • Cooling rate: 5°C/min
  • Heating rate: 5°C/min
  • Cooling system: Mechanical compression refrigeration
  • Controller: Programmable color LCD touchscreen with Ethernet and PC Link
  • Safety devices: Over-temperature, Over-current, Refrigerant High-Pressure, Earth Leakage
  • Exterior material: Coated steel plate
  • Interior material: SUS304 stainless steel
  • Interior volume: 1000 L
  • Internal dimensions (W × D × H): 1000 × 1000 × 1000 mm
  • Overall dimensions (W × D × H): 1500 × 1540 × 2140 mm
  • Heat load: 1000 W
  • Net weight: 625 kg
  • Gross weight: 794 kg
  • Package size: 1670 × 1670 × 2380 mm
  • Power supply: 380V / 220V 50Hz


Features
  • High-volume testing capability for oversized and batch samples
  • Mechanical compression refrigeration for dependable cooling performance
  • Programmable color LCD touchscreen for intuitive operation
  • SUS304 stainless steel interior for corrosion resistance and easy maintenance
  • Coated steel exterior for structural durability
  • Multiple safety protections including over-temperature, over-current, high-pressure and earth leakage protection
  • 1000 W heat load to support demanding test profiles
  • PC-based communication for accurate test data recording
  • Engineered for high reliability and low maintenance during continuous operation


Applications
  • Electronics & Industrial Equipment Testing
    Verifies thermal performance and stability of electronic assemblies, control units and industrial components
  • Automotive & Aerospace Validation
    Tests structural integrity and operational reliability of parts exposed to repeated temperature cycles
  • Battery & Energy System Evaluation
    Supports thermal endurance testing of battery packs and energy storage components across extreme temperatures
  • Material Research & Engineering Development
    Analyzes thermal expansion, fatigue resistance and material behavior during accelerated temperature transitions
  • Industrial Quality Assurance
    Provides repeatable environmental testing for product qualification, production validation and process control
  • Research & Laboratory Applications
    Enables controlled thermal cycling studies for R&D centers, universities and advanced engineering laboratories
