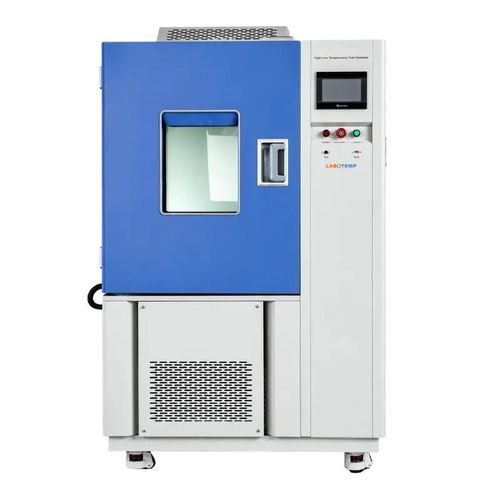

Thermostatic test chamber LCC-101

climatictemperatureenvironmental stress screening

Product Description
Labotemp Thermal Cyclic Chamber LCC-101 is an industrial environmental test chamber engineered for rapid temperature change and thermal cycling. Suited for Environmental Stress Screening (ESS), reliability testing, R&D and quality control in electronics, automotive, aerospace and materials laboratories. Standard interior volume: 100 L. Available temperature ranges: -20°C to +150°C, -40°C to +150°C and -70°C to +150°C.

Control and Operation
The LCC-101 features a programmable color LCD touchscreen controller with Ethernet and PC link, enabling precise monitoring and data transfer. The chamber controls temperature with ±0.5°C fluctuation and supports controlled heating and cooling rates of 5°C/min. A mechanical compression refrigeration system provides efficient cooling; the SUS304 stainless steel interior resists corrosion under continuous operation. Integrated safety protections ensure secure testing conditions.

Why Choose Labotemp Thermal Cyclic Chamber LCC-101?

• 5°C/min controlled heating and cooling: Enables repeatable thermal cycling and ESS procedures
• Wide selectable temperature range up to -70°C to +150°C: Covers most accelerated environmental tests
• Programmable touchscreen with Ethernet: Simplifies test setup, monitoring and data export

Features

• Controlled 5°C/min thermal cycling
• Uniform airflow circulation for consistent temperature distribution
• High-quality insulation to reduce heat loss and improve efficiency
• Large observation window for sample monitoring without interrupting tests
• SUS304 stainless steel interior for corrosion resistance and long service life
• Heavy-duty caster wheels with locking mechanism for positioning
• Modular refrigeration components for simplified maintenance
• Programmable multi-step thermal profiles for automated sequences
• Powder-coated steel exterior for mechanical protection
• Integrated safety interlock and protective monitoring functions

Applications

• Environmental Stress Screening
  Performs rapid thermal cycling to detect early-life failures and improve component reliability
• Electronics Testing
  Evaluates assemblies, sensors and PCBs under repeated temperature transitions
• Automotive & Aerospace
  Verifies durability and performance of components exposed to extreme temperature variations
• Material Testing
  Assesses thermal expansion, contraction and fatigue characteristics of engineering materials
• Research & Development
  Supports thermal simulation studies and product development validation
• Quality Control
  Validates product reliability and performance before production and certification

Specifications

• Model: LCC-101
• Interior Volume: 100 L
• Temperature Range: -20°C to +150°C (options: -40°C to +150°C, -70°C to +150°C)
• Temperature Fluctuation: ±0.5°C
• Temperature Deviation: ±2.0°C
• Heating Rate: 5°C/min
• Cooling Rate: 5°C/min
• Cooling System: Mechanical compression refrigeration system
• Controller: Programmable color LCD touchscreen with Ethernet & PC link
• Interior Material: SUS304 stainless steel
• Exterior Material: Steel plate with protective powder coating
• Safety Protection: Over-temperature, over-current, refrigerant high-pressure, earth leakage
• Internal Dimensions (W×D×H): 400 × 500 × 500 mm
• Overall Dimensions (W×D×H): 900 × 1050 × 1620 mm
• Heat Load: 1000 W
• Net Weight: 335 kg
• Gross Weight: 403 kg
• Package Size: 1150 × 1050 × 1820 mm
