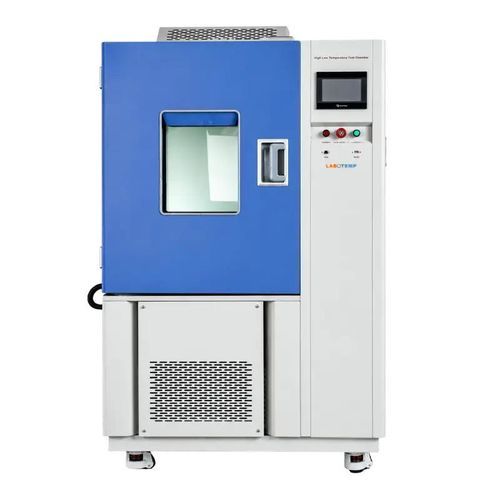

Thermostatic test chamber LCC-103

climatictemperatureenvironmental stress screening

Product Overview
Labotemp Thermal Cycling Chamber LCC-103 is an 800 L environmental test chamber engineered for rapid temperature transitions and thermal cycling in electronics, automotive, aerospace, battery testing, research labs and industrial quality control. Built for Environmental Stress Screening (ESS), it accommodates large components, assemblies and multiple samples with optional temperature ranges down to −70°C.

Performance and Operation
The chamber features a programmable color LCD touchscreen controller with Ethernet and PC Link for program scheduling, monitoring and data export. Temperature stability is maintained at ±0.5°C with controlled heating/cooling rates of 5°C/min. Interior is SUS304 stainless steel; exterior is coated steel for industrial durability and maintenance.

Key Features

• 800 L chamber capacity suitable for large-scale ESS and environmental testing
• Programmable color LCD touch controller with Ethernet and PC Link
• Comprehensive safety protections: over-temperature, over-current, refrigerant high-pressure, earth leakage
• ±0.5°C fluctuation, ±2.0°C deviation for repeatable test conditions
• Controlled 5°C/min heating and cooling rates for consistent thermal cycling
• 1000 W heat load capability supporting stable operation
• Mechanical compression refrigeration system for reliable cooling
• SUS304 stainless steel interior and coated steel exterior for easy maintenance
• Designed for ESS, reliability testing and accelerated life testing

Specifications
Temperature Range: -20°C to +150°C (optional -40°C to +150°C, -70°C to +150°C)
Power Supply: 380V / 220V 50Hz
Temperature Fluctuation: ±0.5°C
Temperature Deviation: ±2.0°C
Heating/Cooling Rate: 5°C/min
Heat Load: 1000 W
Cooling System: Mechanical compression refrigeration system
Controller: Programmable color LCD touch screen with Ethernet & PC Link
Interior Material: SUS304 stainless steel
Exterior Material: Coated steel plate
Interior Volume: 800 L
Internal Dimensions (W × D × H): 800 × 1000 × 1000 mm
Overall Dimensions (W × D × H): 1300 × 1540 × 2120 mm
Net Weight: 601 kg
Gross Weight: 720 kg
Package Size: 1450 x 1670 x 23400 mm

Applications

• Environmental Stress Screening (ESS)
  Rapid thermal cycling for accelerated reliability evaluation
• Electronics & Semiconductor Testing
  Validation of thermal stability and durability of components, PCBs and devices
• Automotive & Aerospace Components
  Assessment of performance and structural integrity under extreme temperature excursions
• Battery & Energy Storage Testing
  Thermal cycling of batteries and energy systems to verify safety and lifespan
• Material Research & Product Development
  Evaluation of thermal resistance, expansion characteristics and material durability
• Industrial Quality Control
  Repeatable environmental tests for production validation and QA

Model and Technical Data

• Model: LCC-103
• Interior Volume: 800 L
• Temperature Range: -20°C to +150°C (optional -40°C, -70°C)
• Temperature Fluctuation: ±0.5°C
• Temperature Deviation: ±2.0°C
• Heating/Cooling Rate: 5°C/min
• Heat Load: 1000 W
• Cooling System: Mechanical compression refrigeration
• Controller: Programmable color LCD touch screen with Ethernet & PC Link
• Interior Material: SUS304 stainless steel
• Exterior Material: Coated steel plate
• Power Supply: 380V / 220V 50Hz
• Internal Dimensions (W×D×H): 800 × 1000 × 1000 mm
• Overall Dimensions (W×D×H): 1300 × 1540 × 2120 mm
• Net Weight: 601 kg
