Rotary laboratory mixer LVB-101

rotatordigitalfor the pharmaceutical industry

Overview

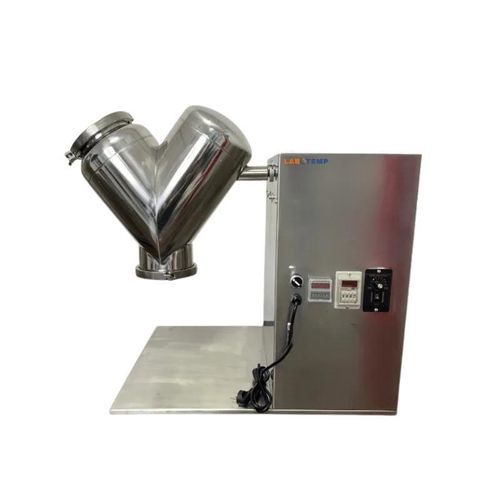

Labotemp V Blender LVB-101 provides controlled laboratory-scale mixing for powders, granules and other compatible dry materials. It features a 5 L drum (2.5 L working volume) in a V-shaped vessel to promote particle movement during rotation. Variable speed from 0–30 r/min allows precise adjustment to formulation and material properties. The product-contact drum is 304 stainless steel; base and support frame are 201 stainless steel.

Operation & Controls
The LVB-101 integrates timed automatic forward and reverse rotation, automatic stop and variable-speed control to ensure repeatable mixing cycles. Programmable rotation intervals and bidirectional movement support research, formulation development and small-batch preparation.

Key Benefits

• 2.5 L working volume suitable for small laboratory batches
• 0–30 r/min variable speed for precise mixing control
• 304 stainless steel drum for a durable product-contact surface

Features

• Timed automatic forward and reverse rotation
• 5 L drum volume for laboratory-scale batches
• 2.5 L working volume for small-batch blending
• V-shaped mixing vessel to enhance material movement
• 0–30 r/min variable mixing speed
• Automatic stop after set operation
• 304 stainless steel drum (product contact)
• 201 stainless steel base and support frame
• 133 mm drum diameter
• 220 V / 110 V voltage options, 50/60 Hz
• 180 W power rating

Applications

• Laboratory powder mixing
  Small-scale blending for formulation development and analytical workflows
• Granule blending
  Laboratory mixing of compatible granular materials
• Pharmaceutical research
  Formulation development and R&D with dry powders and granules
• Chemical research
  Controlled mixing of dry chemical materials
• Materials research
  Sample preparation and experimental blending
• R&D workflows
  Repeatable, controlled mixing for small-batch preparation

Technical Specifications

• Product Type: Laboratory V-Type Mixer / V Blender
• Drum Volume: 5 L
• Working Volume: 2.5 L
• Mixing Speed: 0–30 r/min
• Drum Material: 304 Stainless Steel
• Base & Support Frame Material: 201 Stainless Steel
• Drum Diameter: 133 mm
• Mixing Function: Timed forward & reverse rotation, automatic stop, variable speed
• Voltage: 220 V / 110 V
• Frequency: 50 Hz / 60 Hz
• Power: 180 W
• Machine Dimensions: 700 × 300 × 625 mm
• Packaging Dimensions: 490 × 370 × 670 mm
• Net Weight: 33 Kg
• Gross Weight: 43 Kg
