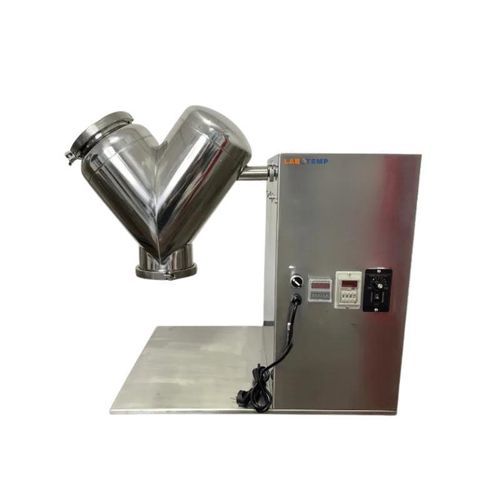

Rotary laboratory mixer LVB-104

digitalfor chemical productsfor the pharmaceutical industry

Product overview
Labotemp V Blender LVB-104 provides controlled laboratory-scale blending with a 20 L drum volume and a 10 L working capacity. The V-shaped mixing vessel promotes inter-particle movement during rotation. Variable speed control (0–30 r/min) enables precise adjustment of blending intensity. The drum is 304 stainless steel (material-contact); base and support frame are 201 stainless steel.

Operational details
The unit features timed forward and reverse rotation, adjustable intervals between direction changes, programmable total mixing time and automatic stop. Controls allow setting forward/reverse periods and cycle timing to match process requirements. Electrical configuration: 220 V / 110 V, 50/60 Hz, 200 W. Note: descriptive text and specification table show a drum diameter discrepancy (186 mm vs. 168 mm). Machine dimensions: 840 × 525 × 760 mm.

Key benefits

• 10 L working volume suitable for larger laboratory-scale batches
• Programmable forward/reverse cycles for uniform blending
• Variable-speed control for process tuning

Features

• Drum volume: 20 L (10 L working)
• Drum diameter: 186 mm (description/features) / 168 mm (spec table)
• Mixing speed: 0–30 r/min (variable)
• V-shaped mixing vessel to promote material movement
• Timed forward and reverse rotation with adjustable direction interval
• Adjustable total mixing time and automatic stop
• 304 stainless steel drum (material-contact)
• 201 stainless steel base and support frame

Applications

• Pharmaceutical research
  Laboratory-scale blending of compatible powders and granules for formulation and development.
• Chemical research
  Controlled mixing of dry materials for laboratory workflows.
• Material research
  Preparation and blending of small powder/granule batches for testing.
• Laboratory R&D
  Small-batch preparation and formulation trials requiring controlled rotational mixing.
• Powder & granular blending
  Suitable for compatible powdered and granular materials in lab processes.

Specifications

• Product type: Laboratory V-type mixer / V blender
• Drum volume: 20 L (total)
• Working volume: 10 L
• Mixing speed: 0–30 r/min (variable)
• Drum material: 304 stainless steel
• Base & support frame: 201 stainless steel
• Drum diameter: 168 mm (spec table) / 186 mm (description/features)
• Mixing functions: Timed forward & reverse rotation, adjustable direction interval, automatic stop, variable speed
• Voltage: 220 V / 110 V
• Frequency: 50 Hz / 60 Hz
• Power: 200 W
• Machine dimensions: 840 × 525 × 760 mm
• Packaging dimensions: 590 × 540 × 700 mm
• Net weight: 46 kg
• Gross weight: 56 kg
