Rotary laboratory mixer LVB-102

for chemical productsfor the pharmaceutical industryfor drug development

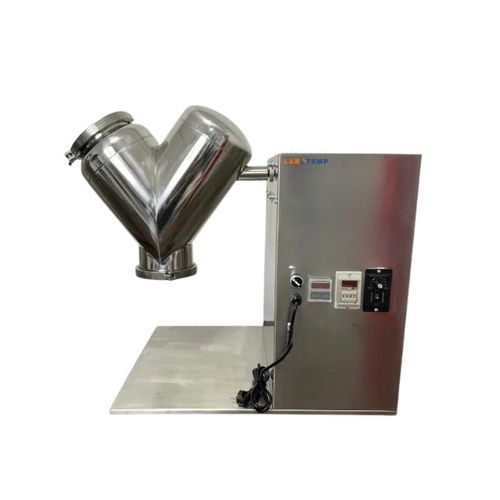

Product Overview Labotemp V Blender LVB-102 provides controlled laboratory-scale V-type blending with a 10 L drum volume and 5 L working capacity. The V-shaped mixing vessel promotes material movement during rotation while a 0–30 r/min variable speed control allows precise adjustment of mixing intensity. The material-contact drum is 304 stainless steel, supported by a 201 stainless steel base and frame. The unit offers timed forward and reverse rotation with adjustable intervals, automatic stop after the programmed total mixing time, and configurable forward/reverse periods to match process needs. It is designed for laboratory powder, granule and small-batch mixing workflows.

Key Features

• Variable mixing speed 0–30 r/min for controlled process adjustment
• 10 L drum volume with 5 L working capacity for laboratory use
• V-shaped mixing vessel to promote material movement during rotation
• Timed forward and reverse rotation with adjustable direction interval
• Automatic stop after programmed total mixing time
• 304 stainless steel drum for material contact
• 201 stainless steel base and support frame
• Drum diameter: 168 mm

Applications

• Laboratory powder mixing
  Controlled blending of laboratory-scale dry powders and particulate materials
• Granule blending
  Laboratory-scale mixing of granular materials where V-type blending is appropriate
• Pharmaceutical research
  Formulation and R&D workflows requiring controlled powder or granule blending
• Chemical research
  Preparation and blending of compatible dry chemical materials in laboratory settings
• Material research & development
  Controlled batch blending for laboratory-scale product development and experiments

Specifications

• Product Type: Laboratory V-Type Mixer / V Blender
• Drum Volume: 10 L
• Working Volume: 5 L
• Mixing Speed: 0–30 r/min
• Drum Material: 304 Stainless Steel
• Base & Support Frame Material: 201 Stainless Steel
• Drum Diameter: 168 mm
• Mixing Function: Timed forward & reverse rotation, adjustable direction interval, automatic stop, variable speed
• Voltage: 220 V / 110 V
• Frequency: 50 Hz / 60 Hz
• Power: 200 W
• Machine Dimensions: 760 × 300 × 650 mm
• Packaging Dimension: 540 × 450 × 670 mm
• Net Weight: 35 Kg
• Gross Weight: 45 Kg
