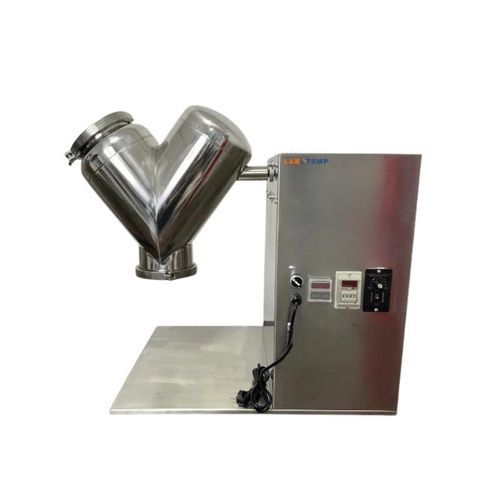

Rotary laboratory mixer LVB-103

for formulationfor the pharmaceutical industryfor research

Product description
Labotemp V Blender LVB-103 provides controlled laboratory-scale mixing with a 15 L drum volume and 8 L working volume. The V-shaped mixing vessel promotes material movement during rotation and enables uniform blending at variable speeds. The drum is 304 stainless steel; base and support frame are 201 stainless steel. The V configuration is suitable for V-cone or tumbling mixer arrangements in laboratory workflows.

Key operational details
This unit features timed automatic forward and reverse rotation, adjustable direction interval, automatic stop and variable-speed control for repeatable mixing cycles. Technical highlights include a 168 mm drum diameter, 0–30 r/min speed range, 220 V 50 Hz 300 W electrical supply, and overall dimensions of 920 × 525 × 780 mm. The 8 L working volume suits laboratory-scale research, formulation and batch blending tasks.

Features

• 0–30 r/min variable speed for controlled adjustment of mixing
• 304 stainless steel drum (mixing vessel)
• 201 stainless steel base and support frame
• Timed automatic forward and reverse rotation with adjustable direction interval
• Automatic stop function to end mixing cycles
• 168 mm drum diameter
• 15 L drum volume (8 L working volume) for medium laboratory batches

Applications

• Laboratory powder mixing: blending of dry powders and compatible materials
• Granule blending: controlled mixing of granular materials
• Pharmaceutical research: formulation development and laboratory-scale powder/granule blending
• Chemical research: controlled mixing of dry chemical materials
• Material research: experimental blending and preparation of dry materials
• Research & Development: laboratory-scale formulation and batch mixing

Specifications

• Product Type: Laboratory V-Type Mixer / V Blender
• Drum Volume: 15 L
• Working Volume: 8 L
• Mixing Speed: 0–30 r/min
• Drum Material: 304 Stainless Steel
• Base & Support Frame Material: 201 Stainless Steel
• Drum Diameter: 168 mm
• Mixing Function: Timed forward & reverse rotation; adjustable direction interval; automatic stop; variable speed
• Voltage: 220 V
• Frequency: 50 Hz
• Power: 300 W
• Machine Dimensions: 920 × 525 × 780 mm
• Net Weight: 43 kg
• Package Dimensions: 590 × 520 × 700 mm
• Package Weight: 53 kg
