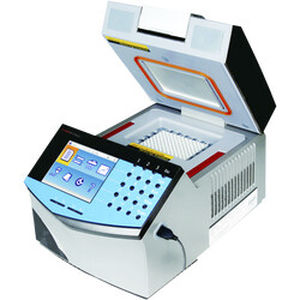

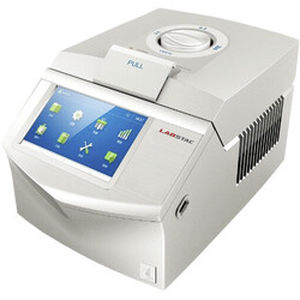

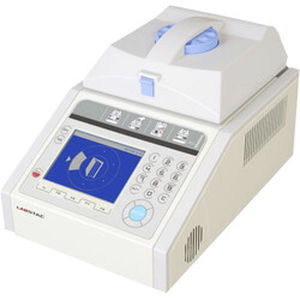

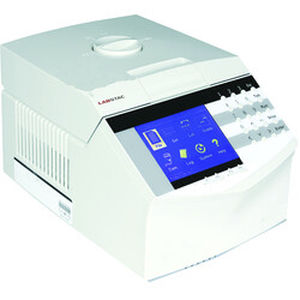

Gradient thermal cycler PCR11-096

96-wellsilvercompact

Product Overview
Engineered by finest quality and leading edge technology according to the advance technology and market norms under the direction of competent experts. Simple, intuitive programming, cost-efficient, fast setup and convenient to use makes it an ideal choice.

• Used in: Molecular biology, Gene amplification, Gene Expression, Research, Development, Food Science, Pharmaceutical, Life Science, Animal Diagnostics, Analytical Laboratories
• Also known as: Laboratory Gradient PCR Thermal Cycler, Gradient PCR Thermocycler, Gradient PCR Machine, Laboratory Gradient PCR Thermocycler

Key Features

• Convenient and flexible module change
• Hermetic seal protects TEs from condensation, maximizing their life
• Two-stage hot lid pressure regulator, endures good sealing performance
• Gold-plated or silver-plated module improves the efficiency of heat conduction

Features

• Convenient and flexible module change
• Hermetic seal protects TEs from condensation, maximizing their life
• Two-stage hot lid pressure regulator, endures good sealing performance
• Gold-plated or silver-plated module improves the efficiency of heat conduction
• Large size and color super-high-definition LCD screen
• Intuitive and user-friendly interface, makes programming quick and easy
• Infinitely adjustable lid knob, suitable for various types of the tube
• Memory function in case of power-down
• Low noise, low energy consumption, long application life
• Heat lid could be positioned at any angle for easy sample access
• Metal material lid, more reliable and safe
• Hard disk and mouse can be linked
• Linked with PC for its multiple control
• Windows operating system
• Convenient, free-charge program upgraded
• Remote diagnosis system for easy maintenance
• Achieve Circulation nesting
• 110-220V international general voltage

Specifications
Temperature Range: 0°C~99.9°C
Max. Heating Ramp Rate: 4.0°C/s
Max. Cooling Ramp Rate: 3.5°C/s
Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x0.5 ml (C) / 384well (D)
Display Interface: 5.7' LCD
Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s
Uniformity: ≤±0.2°C (20~75°C)
Accuracy: ≤±0.2°C
Gradient Temp Range: 30~99°C
Thermal Gradient Span: 2~30°C
Gradient Uniformity: ≤0.2°C (single row)
Hot Lid Temperature: 30~115°C
Max. No. of Cycle: 99
Communication: USB2.0 / RS 232
Temp Control Mode: Block, tube
Memory Capacity: 200
Dimension (WxDxH): 380x270x250 mm
Weight: 7.2 kg

Accessories
Accessory Code: 5100505008 | Name: Block C | Capacity: 96x0.2 ml+77x0.5 ml

Optional Accessories
Accessory Code: 5100505005 | Name: Block A | Capacity: 96x0.2 ml
Accessory Code: 5100505006 | Name: Block B | Capacity: 54x0.5 ml
Accessory Code: 5100505007 | Name: Block D | Capacity: 384 well

Technical Characteristics / Specifications

• Temperature Range: 0°C~99.9°C
• Max. Heating Ramp Rate: 4.0°C/s
• Max. Cooling Ramp Rate: 3.5°C/s
• Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x0.5 ml (C) / 384well (D)
• Display Interface: 5.7' LCD
• Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s
• Uniformity: ≤±0.2°C (20~75°C)
• Accuracy: ≤±0.2°C
• Gradient Temp Range: 30~99°C
• Thermal Gradient Span: 2~30°C
• Gradient Uniformity: ≤0.2°C (single row)
• Hot Lid Temperature: 30~115°C
• Max. No. of Cycle: 99
• Communication: USB2.0 / RS 232
• Temp Control Mode: Block, tube
• Memory Capacity: 200
• Dimension (WxDxH): 380x270x250 mm
• Weight: 7.2 kg
