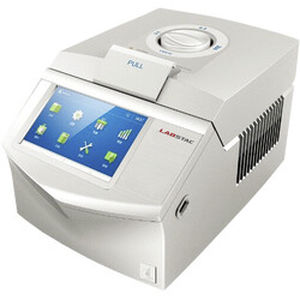

Gradient thermal cycler PCR13-096

Peltier effect96-wellcompact

Product Overview
Engineered by finest quality and leading edge technology according to the advance technology and market norms under the direction of competent experts. Simple, intuitive programming, cost-efficient, fast setup and convenient to use makes it an ideal choice.

• Used in Analytical Laboratories, Molecular biology, Gene amplification, Gene Expression, Research, Development, Food Science, Pharmaceutical, Life Science, Animal Diagnostics

• Also known as: Gradient PCR Machine, Laboratory Gradient PCR Thermal Cycler, Gradient PCR Thermocycler, Laboratory Gradient PCR Thermocycler

Key Features

• The most advanced peltier-based semiconductor technology
• Highly performance universal power supply
• Large 5.7 inch high-definition LCD display
• Graphical user interface in English and Chinese
• Power-down data protection
• Metal shell, solid, practical, beautiful and generous
• Stepless adjustable hot lid
• Lid can be positioned at any angle
• High-sealing reaction zone, to ensure stable and reliable test

Specifications
Temperature Range: 0°C~99.9°C
Max. Heating Ramp Rate: 5°C/s
Max. Cooling Ramp Rate: 5°C/s
Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x0.5 ml (C) / 384well (D)
Display Interface: 7' LCD
Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s
Uniformity: ≤±0.2°C
Accuracy: ≤±0.1°C
Gradient Temp Range: 30~99°C
Thermal Gradient Span: 1~30°C
Gradient Uniformity: ≤0.2°C (single row)
Hot Lid Temperature: 20~110°C
Max. No. of Cycle: 999
Communication: USB2.0 / RS 232 / RJ45
Temp Control Mode: Block, tube*
Memory Capacity: 2000*
Note: *10~100µl Optional **Unlimited with use of USB memory stick
Intelligent Diagnosis: 108
Dimension (WxDxH): 380x270x250 mm
Weight: 8.1 kg

Technical Characteristics / Specifications

• Temperature Range: 0°C~99.9°C
• Max. Heating Ramp Rate: 5°C/s
• Max. Cooling Ramp Rate: 5°C/s
• Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x0.5 ml (C) / 384well (D)
• Display Interface: 7' LCD
• Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s
• Uniformity: ≤±0.2°C
• Accuracy: ≤±0.1°C
• Gradient Temp Range: 30~99°C
• Thermal Gradient Span: 1~30°C
• Gradient Uniformity: ≤0.2°C (single row)
• Hot Lid Temperature: 20~110°C
• Max. No. of Cycle: 999
• Communication: USB2.0 / RS 232 / RJ45
• Temp Control Mode: Block, tube*
• Memory Capacity: 2000*
• Note: *10~100µl Optional **Unlimited with use of USB memory stick
• Intelligent Diagnosis: 108
• Dimension (WxDxH): 380x270x250 mm
• Weight: 8.1 kg
