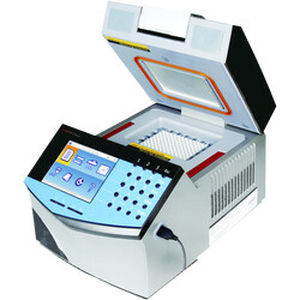

Gradient thermal cycler PCR12-096

96-wellcompactwith USB port

Product Overview
Engineered by finest quality and leading edge technology according to the advance technology and market norms under the direction of competent experts. Simple, intuitive programming, cost-efficient, fast setup and convenient to use makes it an ideal choice.

• Used in Analytical Laboratories, Molecular biology, Gene amplification, Gene Expression, Research, Development, Food Science, Pharmaceutical, Life Science, Animal Diagnostics
• Also known as Gradient PCR Machine, Laboratory Gradient PCR Thermal Cycler, Gradient PCR Thermocycler, Laboratory Gradient PCR Thermocycler

Key Features

• Optimized to very low energy consumption
• Low noise, low energy consumption, long application life
• Specially designed lids reduce the evaporation during PCR
• Hinge utilized in labtop industry makes lode open more flexible

Features

• Optimized to very low energy consumption
• Low noise, low energy consumption, long application life
• Specially designed lids reduce the evaporation during PCR
• Hinge utilized in labtop industry makes lode open more flexible
• Infinitely adjustable lid knob, suitable for various types of the tube
• Versatile configuration options
• Gold-plated or silver-plated module improves the efficiency of heat conduction
• Portable design is easy for sample blocks interchange without maintenance
• 2000 protocols on board, unlimited with use of USB memory stick
• ARM Platform, Windows CE operating system
• Large size and color super-high-definition LCD screen
• Intuitive and user-friendly interface, makes programming quick and easy
• Make a reservation and alarm for daily lab work
• Support the function of TM value calculation
• Portability: Transfers method between Genemate systems via USB ports
• Backup: Store your most important methods on a USB memory stick
• Storage: Store an unlimited number of methods by using a USB memory stick
• Uploads: Update firmware when enhancements become available

Specifications
Temperature Range: 0°C~99.9°C
Max. Heating Ramp Rate: 4.5°C/s
Max. Cooling Ramp Rate: 4°C/s
Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x0.5 ml (C) / 384well (D)
Display Interface: 5.7' LCD
Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s
Uniformity: ≤±0.2°C
Accuracy: ≤±0.1°C
Gradient Temp Range: 30~99°C
Thermal Gradient Span: 1~30°C
Gradient Uniformity: ≤0.2°C (single row)
Hot Lid Temperature: 20~110°C
Max. No. of Cycle: 999
Communication: USB2.0 / RS 232 / RJ45
Temp Control Mode: Block, tube*
Memory Capacity: 1000**
Note: *10~100µl Optional **Unlimited with use of USB memory stick
Intelligent Diagnosis: 108
Dimension (WxDxH): 380x270x250 mm
Weight: 7.8 kg

Accessories
Accessory Code: 5100505008 | Name: Block C | Capacity: 96x0.2 ml+77x0.5 ml

Optional Accessories
Accessory Code: 5100505005 | Name: Block A | Capacity: 96x0.2 ml
Accessory Code: 5100505006 | Name: Block B | Capacity: 54x0.5 ml
Accessory Code: 5100505007 | Name: Block D | Capacity: 384 well

Technical Specifications / Characteristics

• Temperature Range: 0°C~99.9°C
• Max. Heating Ramp Rate: 4.5°C/s
• Max. Cooling Ramp Rate: 4°C/s
• Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x0.5 ml (C) / 384well (D)
• Display Interface: 5.7' LCD
• Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s
• Uniformity: ≤±0.2°C
• Accuracy: ≤±0.1°C
• Gradient Temp Range: 30~99°C
• Thermal Gradient Span: 1~30°C
• Gradient Uniformity: ≤0.2°C (single row)
• Hot Lid Temperature: 20~110°C
• Max. No. of Cycle: 999
• Communication: USB2.0 / RS 232 / RJ45
• Temp Control Mode: Block, tube*
• Memory Capacity: 1000**
• Note: *10~100µl Optional **Unlimited with use of USB memory stick
• Intelligent Diagnosis: 108
• Dimension (WxDxH): 380x270x250 mm
• Weight: 7.8 kg
