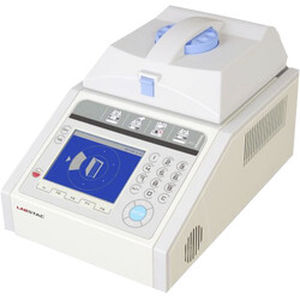

Gradient thermal cycler PCR14-096

Peltier effect96-wellcompact

Product Overview
Engineered by finest quality and leading edge technology according to the advance technology and market norms under the direction of competent experts. Simple, intuitive programming, cost-efficient, fast setup and convenient to use makes it an ideal choice.

• Used in: Gene amplification, Gene Expression, Analytical Laboratories, Molecular biology, Research, Development, Food Science, Pharmaceutical, Life Science, Animal Diagnostics

• Also known as: Gradient PCR Thermocycler, Gradient PCR Machine, Laboratory Gradient PCR Thermal Cycler, Laboratory Gradient PCR Thermocycler

Key Features

• The most advanced peltier-based semiconductor technology
• Highly performance universal power supply
• Large 5.7 inch high-definition LCD display
• Graphical user interface in English and Chinese
• Power-down data protection
• Metal shell, solid, practical, beautiful and generous
• Stepless adjustable hot lid
• Lid can be positioned at any angle
• High-sealing reaction zone, to ensure stable and reliable test

Specifications
Sample Capacity: 96x0.2 ml
Temperature Range: 0°C~99.9°C
Temperature Increment/Decrement: 0.1~10.0°C
Hold at 4°C: Forever
Max. ramp rate: 0.1°C~2.5°C
Max Heating Rate: 4.5°C
Max Cooling Rate: 4°C / s
Display Interface: LCD, 8',800x600
Display Resolution: 0.1°C
Uniformity: ≤±0.3°C
Accuracy: ≤±0.2°C
Thermal Gradient Accuracy: ≤±0.3°C
Gradient Spread: 1~30°C
Gradient Uniformity: ≤±0.2°C
Hot Lid Temperature: 30°C~110°C
Height of hot Lid: Stepless Adjustable
Max.No.of Cycle: 100
Program Storage: 10000+(USB Flash)
Max Program Steps: 30
Communication: USB2.0 , LAN
Temp Control Mode: Block, tube
Time Increment/Decrement: 1 sec ~600 sec
Pause Function: Yes
Auto Data Protection: Yes
Dimension (WxDxH): 270x390x255 mm
Power: 600 W
Weight: 9 kg
Power Supply: 85~264 V AC , 47~63 Hz

Technical Characteristics / Specifications

• Sample Capacity: 96x0.2 ml
• Temperature Range: 0°C~99.9°C
• Temperature Increment/Decrement: 0.1~10.0°C
• Hold at 4°C: Forever
• Max. ramp rate: 0.1°C~2.5°C
• Max Heating Rate: 4.5°C
• Max Cooling Rate: 4°C / s
• Display Interface: LCD, 8',800x600
• Display Resolution: 0.1°C
• Uniformity: ≤±0.3°C
• Accuracy: ≤±0.2°C
• Thermal Gradient Accuracy: ≤±0.3°C
• Gradient Spread: 1~30°C
• Gradient Uniformity: ≤±0.2°C
• Hot Lid Temperature: 30°C~110°C
• Height of hot Lid: Stepless Adjustable
• Max.No.of Cycle: 100
• Program Storage: 10000+(USB Flash)
• Max Program Steps: 30
• Communication: USB2.0 , LAN
• Temp Control Mode: Block, tube
• Time Increment/Decrement: 1 sec ~600 sec
• Pause Function: Yes
• Auto Data Protection: Yes
• Dimension (WxDxH): 270x390x255 mm
• Power: 600 W
• Weight: 9 kg
• Power Supply: 85~264 V AC , 47~63 Hz
