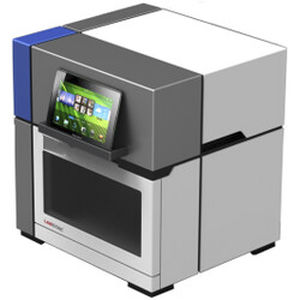

Medical research nucleic acid extractor NPS11-1500

for clinical diagnosticfor researchmagnetic bead-based

Product Details
Nucleic Acid Purification System utilises the proven magnetic-particle technology to extract highly purified nucleic acid from a wide range of sample types relevant for molecular diagnostics, genetic identity testing, forensic testing, biomedical research and gene expression analysis. The combination of easy-to-use instruments, with pre-loaded protocols selection and magnetic particle-based sample preparation kits filled with unique special reagent ensures the rapid nucleic acid extraction and highly purified products.

• Used in: Biological, Medical Sciences, DNA and RNA Purification, Cultured Cells, Bacteria, Tissues, Cell-Free Body Fluids, Plant Samples, Blotting, PCR, Cloning
• Also known as: Laboratory Nucleic Acid Purification System

Key Features

• Easy Operation - unique remote control pad saving time and improve your work efficiency.
• Flexible solution - pre-loaded protocols selection for up to 15, 32 or 48 samples per run.
• Fast startup and immediate results - with special rapid reagents, the extraction can be done within 10 minutes.
• Reliable result you can depend on - high-quality nucleic acid ready to use in sensitive downstream applications.

Specifications
Processing Volume | 30 -1500 μl, 30-1000 ul
Capacity | 15,32,48 samples per run customized
Collection Efficiency of the magnetic particles | ≥95%
Heating Temperature For Cell Lysis | Room temperature to 120℃
Heating Temperature for Nucleic Acid Elution | Room temperature to 120℃
Processing Mode | Multi-mode, multi-speed available
Reagents | Reagents suitable for Magnetic Particle Method
Operation Interface | English Language Operating System, Touch-control Operation
Storage Capacity | 15 preinstalled protocols in main unit, unlimited in pad
Protocol Management | Create, edit, delete, protocol mode
Pollution Control | UV light
Computer Interface | USB
Network Communication | Ethernet(optional)
Dimensions(WxLxH) | 440×435×445 mm
Weight | 31.5 kg
Power Requirements | C110±10%/230V±10%, 50Hz/60Hz±1 Hz, 600 W
Temperatures allowed during operation | 10-40℃
Relative humidity allowed during operation | <80%

Technical Characteristics / Specifications

• Processing Volume: 30 -1500 μl, 30-1000 ul
• Capacity: 15,32,48 samples per run customized
• Collection Efficiency of the magnetic particles: ≥95%
• Heating Temperature For Cell Lysis: Room temperature to 120℃
• Heating Temperature for Nucleic Acid Elution: Room temperature to 120℃
• Processing Mode: Multi-mode, multi-speed available
• Reagents: Reagents suitable for Magnetic Particle Method
• Operation Interface: English Language Operating System, Touch-control Operation
• Storage Capacity: 15 preinstalled protocols in main unit, unlimited in pad
• Protocol Management: Create, edit, delete, protocol mode
• Pollution Control: UV light
• Computer Interface: USB
• Network Communication: Ethernet(optional)
• Dimensions(WxLxH): 440×435×445 mm
• Weight: 31.5 kg
• Power Requirements: C110±10%/230V±10%, 50Hz/60Hz±1 Hz, 600 W
• Temperatures allowed during operation: 10-40℃
• Relative humidity allowed during operation: <80%
