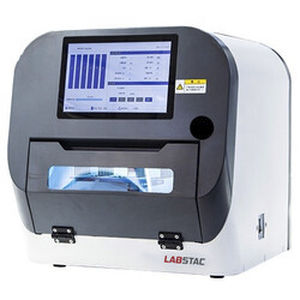

Clinical diagnostic nucleic acid extractor NPS13-32

for researchfor medical researchfully automated

Product Details
Nucleic Acid Extraction System is an important tool in molecular biology. The instruments are well suited for improving sample throughput and minimizing labor-intensive manual tasks, like pipetting and dispensing. Systems typically also include functions such as shaking, temperature control, and PCR protocols.

• Used in: DNA and RNA Purification, Cultured Cells, Bacteria, Tissues, Cell-Free Body Fluids, Plant Samples, Blotting, PCR, Cloning, Medical Sciences
• Also known as: Nucleic acid Extractor

Key Features

• Friendly user interface: Smart & Intelligent display
• With 10.1 inch LCD touch screen, Windows operating system
• Zero Aerosol Contamination: High efficiency HEPA filter and Auto safety door protection function, HEPA filter and UV lamp
• Replacement HEPA filter and UV lamp replacement alarm functions
• UV Sterilization Lamp
• With manual or set automatic opening time UV lamp
• Sterilizing the operation area easily and effectively
• Integrated Shaking & Heating Module: Mix deep wells while heating, saving extraction time

Specifications
Extraction Method: Magnetic Bead
Sample Capacity: 32
Processing Volume: 20-1000 μL
Extraction Time: 15min-60min
Magnetic Bead Recovery: ≥98%
Extraction Difference Between Wells: ＜3%
Magnetic Rod Flux: 4500Gs
Temperature Range: Adjustable heating function, RT-100℃
Oscillating Mixing: Vertical Mixing, low, medium, high three gears adjustable
Module Station: 2
Protection Function: Start up self-checking, power off protection, high temperature alarm, over temperature protection, motor protection
Disinfection Method: 8W UV Lamp
Illuminating Lamp: 3.4 W LED Lamp
Operation Interface: 10.1 inch capacitive touch screen / Windows system
Barcode Scanning Function: Optional external barcode scanner
Project Storage: >1000
Interface: 2 USB port, optional LAN port
Contamination Control: Class II HEPA filter can effectively filter the internal aerosol and prevent cross contamination
IAP Function: Firmware can be updated online at any time
External Size: 450x440x532 mm
Package Size: 538x538x750 mm
Gross Weight (kg): 37 kg
Power Supply: AC100-240V 50Hz/60Hz

Characteristics / Technical Specifications

• Extraction Method: Magnetic Bead
• Sample Capacity: 32
• Processing Volume: 20-1000 μL
• Extraction Time: 15min-60min
• Magnetic Bead Recovery: ≥98%
• Extraction Difference Between Wells: ＜3%
• Magnetic Rod Flux: 4500Gs
• Temperature Range: RT-100℃, adjustable heating
• Oscillating Mixing: Vertical, low/medium/high adjustable
• Module Station: 2
• Protection: Start up self-checking, power off, high temp alarm, over temp, motor protection
• Disinfection: 8W UV Lamp
• Illuminating Lamp: 3.4 W LED
• Operation Interface: 10.1 inch capacitive touch screen / Windows
• Barcode Scanning: Optional external
• Project Storage: >1000
• Interface: 2 USB, optional LAN
• Contamination Control: Class II HEPA filter
• IAP Function: Online firmware update
• External Size: 450x440x532 mm
• Package Size: 538x538x750 mm
• Gross Weight: 37 kg
• Power Supply: AC100-240V 50Hz/60Hz
