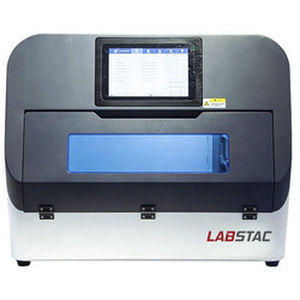

Medical research nucleic acid extractor NPS14-96

for clinical diagnosticfor researchhigh-throughput

Product Overview
Nucleic Acid Extraction System is an important tool in molecular biology. The instrument is well suited for improving sample throughput and minimizing labor-intensive manual tasks, like pipetting and dispensing. Systems typically also include functions such as shaking, temperature control, and PCR protocols.

• Used in: DNA and RNA Purification, Cultured Cells, Bacteria, Tissues, Cell-Free Body Fluids, Plant Samples, Blotting, PCR, Cloning, Medical Sciences
• Also known as: Nucleic acid Extractor

Key Features

• Display: 10.1 inch touch screen, easy to operate
• Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature and store samples in a short time at low temperature.
• The module is integrated with shocking and heating, which can be mixed with shock while heating, saving extraction time.
• Equipped with ultraviolet disinfection lamp, HDPE high efficiency filter and safety door protection function, it can effectively prevent aerosol pollution.

Specifications
Nucleic Acid Extraction Method: Paramagnetic particle method
Sample Capacity: 96-well
Sample Volume: 20-1000 μl
Extraction Time: 11min-60min
Magnetic Bead Recovery: ≥98%
Magnetic Flux of Bar: ≥4500Gs
Operating Temperature: RT-105℃
Shock Function: Yes
Temperature Accuracy: 0.1℃
Sample Protection Function: Power on self-check, power off protection, high-temperature alarm, over-temperature protection
Disinfection Method: UV Light
Safety Door Design: The instrument is suspended when the safety door is opened
Operating System: Windows system
Scanning: Optional
Storage: >1000
Interface: USB interface
Package Size: 940x710x910 mm
Gross Weight: 110 kg
Power Supply: AC100-240V 50Hz/60Hz

Technical Characteristics / Specifications

• Nucleic Acid Extraction Method: Paramagnetic particle method
• Sample Capacity: 96-well
• Sample Volume: 20-1000 μl
• Extraction Time: 11min-60min
• Magnetic Bead Recovery: ≥98%
• Magnetic Flux of Bar: ≥4500Gs
• Operating Temperature: RT-105℃
• Shock Function: Yes
• Temperature Accuracy: 0.1℃
• Sample Protection Function: Power on self-check, power off protection, high-temperature alarm, over-temperature protection
• Disinfection Method: UV Light
• Safety Door Design: The instrument is suspended when the safety door is opened
• Operating System: Windows system
• Scanning: Optional
• Storage: >1000
• Interface: USB interface
• Package Size: 940x710x910 mm
• Gross Weight: 110 kg
• Power Supply: AC100-240V 50Hz/60Hz
