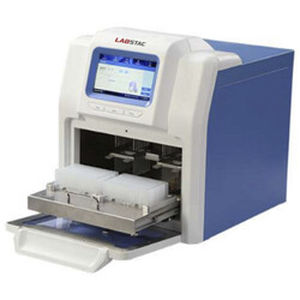

Clinical diagnostic nucleic acid extractor NPS12-1000

for medical researchcompacthigh-capacity

Product Details
Nucleic Acid Purification System utilises the proven magnetic-particle technology to extract highly purified nucleic acid from a wide range of sample types relevant for molecular diagnostics, genetic identity testing, forensic testing, biomedical research and gene expression analysis. The combination of easy-to-use instruments, with pre-loaded protocols selection and magnetic particle-based sample preparation kits filled with unique special reagent ensures the rapid nucleic acid extraction and highly purified products.

• Used in: Medical Sciences, DNA and RNA Purification, Cultured Cells, Bacteria, Tissues, Cell-Free Body Fluids, Plant Samples, Blotting, PCR, Cloning, Biological
• Also known as: Laboratory Nucleic Acid Purification System

Key Features

• Very simple operation (easy to install, operate, maintain) without computer. With process volume of 50 ~1000 ul
• Very fast extraction protocol, 15~40 minutes/cycle depending on sample type and method.
• Universal built-in program for easy using.
• High purity and excellent yield of nucleic acid.
• UV lamp to avoid cross-contamination.
• 3 shortcut key to make for easy running, stopping the magnetic beads program.
• Open system can optimize purification proposal according to various magnetic beads kits.
• Drawer design to prevent possible injuries.
• With special plastic consumables to avoid cross-contamination.
• Improves workflow, and allows staff to perform other value-added tasks.
• Ensures impurities are removed; improved sample quality leads to better downstream analyses.
• Capable of extracting 1~20 samples or 1~32 samples per run and process samples up to 1ml, 3ml, and 5ml.
• Alarm for indicating the completion of purification.
• Pause function for emergent stop.

Specifications
Storage Capacity: more than 100 programs
Protocol Management: Create, edit, delete, protocol mode
Pollution Control: UV light
Dimensions (WxLxH): 400x470x450 mm
Weight: 25 kg
Throughput: 1~32
Process Volume: 50~1000 ul
Collection Efficiency: >95%
Magnetic Rod Number: 32
Purification Accuracy: 100 copy sample positive rate >95%
Stability: CV<5%
Plate Types: 96 deep well plate
Heating for lysis tube: Ambient temperature~120°C
Heating for elution tube: Ambient temperature~120°C
Operation: 7-inch color touchscreen
Extraction Steps: Lysis, Sample Binding, Washing and Elution
Lighting: Yes
Extension Interface: 4 standard USB port, built-in SD card
Exhaust: Fan
Power Supply: 450 W

Optional Accessories
Accessory Code: 4700506005, Name: 96-Deepwell plate
Accessory Code: 4700506006, Name: Magnetic rod's tip

Caractéristiques / spécifications techniques

• Model: NPS12-1000
• Storage Capacity: more than 100 programs
• Protocol Management: Create, edit, delete, protocol mode
• Pollution Control: UV light
• Dimensions (WxLxH): 400x470x450 mm
• Weight: 25 kg
• Throughput: 1~32
• Process Volume: 50~1000 ul
• Collection Efficiency: >95%
• Magnetic Rod Number: 32
• Purification Accuracy: 100 copy sample positive rate >95%
• Stability: CV<5%
• Plate Types: 96 deep well plate
• Heating for lysis tube: Ambient temperature~120°C
• Heating for elution tube: Ambient temperature~120°C
• Operation: 7-inch color touchscreen
• Extraction Steps: Lysis, Sample Binding, Washing and Elution
• Lighting: Yes
• Extension Interface: 4 standard USB port, built-in SD card
• Exhaust: Fan
• Power Supply: 450 W
