OTR tester C201Hgas flowlaboratoryautomatic
Add to favorites
Compare this product
Characteristics
- Tested parameter
- gas flow, OTR
- Applications
- laboratory
- Operating mode
- automatic
- Configuration
- benchtop
- Weight
68 kg
(149.9 lb)- Width
38 cm
(15 in)- Height
68 cm
(26.8 in)
Description
Overview
Key features
Test principle
Standards
Applications & sample types
Technical specifications
Options & accessories

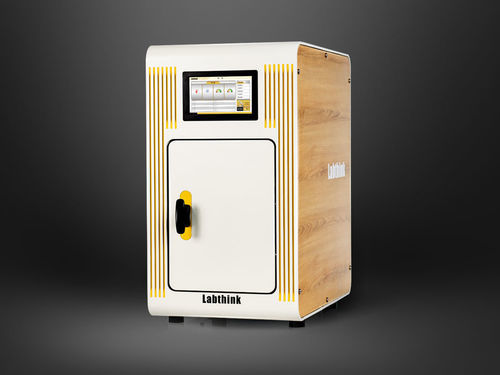

- The C201H Oxygen Transmission Rate Tester by Labthink is a laboratory OTR analyzer using a coulometric (equal-pressure) oxygen sensor to measure oxygen transmission of films, sheets and packaging containers with high precision and conformity to ASTM D3985.
Key features
- Coulometric ppb‑class oxygen sensor with extended service life and over‑limit alarm.
- 360° constant‑temperature airflow circulation, automatic carrier gas flow and temperature control, NIST‑based humidity generation and high‑precision temperature/humidity sensors.
- Patent dual test cell for films and containers with automatic clamping and quick mode switching.
- Industrial color touchscreen, automated data acquisition, network port and support for central data management (DataShieldTM), GMP/CFR21 Part11 options.
Test principle
- Sample is sealed between two chambers; oxygen diffuses through the sample and is carried by high‑purity nitrogen to the coulometric sensor; measured concentration is used to calculate OTR.
Standards
- Designed to comply with ASTM D3985; compatible with ASTM F1307, GB/T 19789, GB/T 31354, DIN 53380‑3, JIS K7126‑2‑B, YBB 00082003.
Applications & sample types
- Films and sheets: single‑layer and multi‑layer films, metallized and laminated films.
- Packaging containers: bottles, pouches, cans, Tetra Pak, tubes, closures and other finished packages.
- Other materials: foils, rubber, silicon, solar back sheets, battery separators, fuel tanks.
Technical specifications
- OTR range (50 cm²): 0.01–200 cc/(m2·day); containers: 0.00005–1 cc/(pkg·day); optional 5 cm² area: 0.2–2000 cc/(m2·day).
- Resolution: 0.0001 cc/(m2·day). Repeatability: 0.01 cc/(m2·day) or 1% (larger value).
- Temperature range: 15–50 °C (±0.2 °C). Humidity range: 35–90% RH ±2% (0% and 100% optional).
- Film test area: 4.2" × 4.2" (10.6 × 10.6 cm). Film thickness ≤ 120 mil (3 mm). Container size ≤ Φ100 mm × 250 mm; bottle neck Φ15–Φ65 mm.
- Gas requirements: N2 99.999% (carrier), O2 99.5% (source) — user supplied; source pressure ≥ 40.6 PSI / 280 kPa. Port: 1/8" metal tubing.
- Dimensions: 26.7" H × 14.9" W × 22.8" D (68 × 38 × 58 cm). Power: 120 VAC ±10% 60 Hz / 220 VAC ±10% 50 Hz. Net weight ≈ 68 kg.
Options & accessories
- GP‑02 gas purifier, DataShieldTM centralized data management, GMP/CFR21 Part11 software options, micro‑printer, compressor, additional test cells and software/computer packages.
