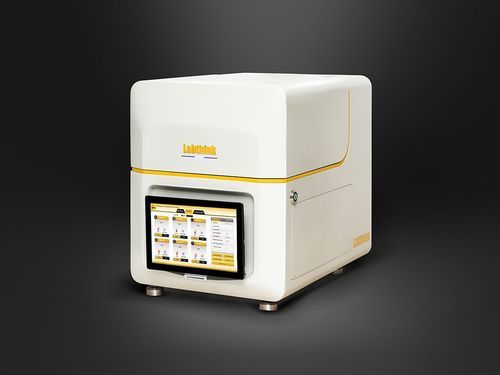

Gas pressure testing system C206H

OTRlaboratoryautomatic

The C206H Oxygen Transmission Rate (OTR) Test System is a laboratory instrument based on the coulometric sensor method (in accordance with ASTM D3985) for automated, high-accuracy measurement of oxygen transmission through films, sheets, paper and other packaging materials.

Product features

• Coulometric sensor: Labthink ppb‑level coulometric sensor with extended measurement range; intrinsic design requiring no routine calibration; service life approximately three times that of conventional coulometric sensors; built‑in over‑range warning and automatic protection.
• Accurate data: Dome‑style test chamber with 360° air‑circulation constant‑temperature technology for improved thermal stability; integrated high‑precision humidity sensor for real‑time monitoring; automated control of airflow, temperature and relative humidity to increase measurement accuracy.
• High efficiency: Six independent test cells (standard test area 50 cm²) allow simultaneous, independent testing of multiple specimens under identical conditions; automated specimen clamping ensures consistent clamping force and improved airtightness.
• Intelligent control: 12" touchscreen tablet running Windows 10 for intuitive operation; automatic test mode (enter temperature and humidity, start with one click); chamber cover opens/closes automatically with audible and visual alerts.
• Safe and reliable: Built‑in industrial computer for operational stability and secure data storage; intelligent optical sensors with alarms; high‑quality components from global manufacturers.
• Space saving: Instrument width reduced to about one‑third of traditional six‑cell solutions to optimize laboratory space.
• Advanced functions: Professional mode with flexible control options and curve outputs (OTR, transmission coefficient, temperature, humidity); ultra‑wide and customizable test ranges and optional extended temperature range; optional GP‑01 gas purifier, DataShield™, GMP system support and CFR21 Part11 compliance options.

Test principle

• A preconditioned specimen is clamped in the test cell; oxygen/air flows on one side while high‑purity nitrogen flows on the other. Oxygen molecules permeating the specimen are carried to the coulometric sensor, which analyzes the signal and calculates oxygen transmission rate and related parameters.

Standards

• ASTM D3985
• ASTM F1307
• GB/T 19789
• GB/T 31354
• DIN 53380-3
• JIS K7126-2-B
• YBB 00082003-2015

Applications

• Films: Plastic films, paper–plastic laminates, coextruded films, aluminized films, aluminium foil, foil‑based composites and reinforced films.
• Sheets: PP, PVC, PVDC sheets, metal foils, rubber pads, silicon wafers and other sheet materials.

Specifications

• Model: C206H
• Test range (standard area 50 cm²): 0.02 – 200 cc/(m²·day)
• Extended range (customizable, standard 50 cm²): 0.02 – 400000 cc/(m²·day)
• Optional ranges (MASK 5 cm² / MASK 1 cm²): 0.2 – 2000 cc/(m²·day) / 1 – 10000 cc/(m²·day)
• Resolution: 0.01 cc/(m²·day)
• Repeatability: 0.02 cc/(m²·day) or 1% (larger value)
• Test temperature: 15 – 50 °C (5 – 60 °C optional)
• Temperature fluctuation: ±0.15 °C
• Test humidity: 0% or 5 – 90% RH ±2% (within standard temperature range)
• Test cells: 6 independent cells
• Sample size: 4.6" × 4.6" (11.7 cm × 11.7 cm)
• Maximum sample thickness: ≤ 120 mil (≈3 mm)
• Standard test area: 50 cm²
• Gas supply (not included): Nitrogen 99.999%, Oxygen 99.5%
• Required gas pressure: ≥ 40.6 PSI / 280 kPa
• Gas port: 1/8" metal tube (device includes PU tube Ø6 mm)
• Instrument dimensions: 23.6" H × 19.2" W × 25.9" D (60 × 49 × 66 cm)
• Power supply: 120 VAC ±10% 60 Hz or 220 VAC ±10% 50 Hz
• Net weight: ≈ 220 lb (100 kg)
• Standard configuration: instrument mainframe, 12" touchscreen tablet, sampler, vacuum grease, PU tube Ø6 mm
• Options/accessories: GP‑01 gas purifier, air compressor, DataShield™, GMP computer system support, CFR21 Part11 compliance (optional)
