Flow tester C230H

humiditypressuretemperature

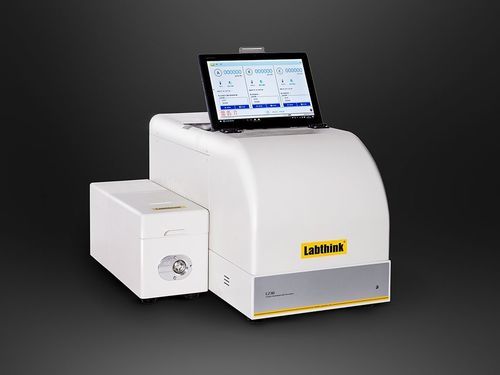

PERME® C230H Oxygen Transmission Rate Tester is a laboratory instrument based on the coulometric sensor (equal pressure) method and designed according to ASTM D3985 for measuring OTR of medium- and high-barrier materials and complete packages.

Key benefits

• High precision: patented integrated three-cell test block with advanced hydrodynamic and thermodynamic design; Labthink thermostat technology ensures precise, stable block temperature; independent temperature and humidity sensors for each cell.
• High efficiency: three identical or distinct specimens tested simultaneously under identical conditions to increase throughput and support parallel-testing workflows.
• Labor saving: automatic control of temperature, humidity and flow rate minimizes operator interventions and reduces verification needs across test ranges.
• Simplified operation: 12" touch-screen running Windows™ 10; fast automatic test modes; optional DataShield™ for centralized data management and network integration.

Product features

• Integrated three-cell testing block
  Patented design improves measurement uniformity of temperature, humidity and flow among the three channels and supports simultaneous testing.
• Automatic control of environment and flow
  Internal sensors monitor and adjust temperature, relative humidity and carrier-gas flow to maintain stable test conditions and minimize flow-instability errors.
• Flexible operation modes
  Automatic mode for unattended routine testing; professional mode for research and customized test protocols; optional DataShield™ for wired/wireless LAN, multi-format export and third‑party integration.
• Package and custom fixtures
  Optional accessories support whole-package testing (bottles, pouches, cartons, blisters, tubes) and non-standard specimen holders.

Applications

• Films: plastic films, paper-plastic composites, coextruded films, metallized films, aluminium foils and multilayer composites used in food, pharmaceutical and industrial packaging.
• Sheets: PP, PVC, PVDC sheets, metal foils, rubber pads, silicon wafers and other sheet materials.
• Packages: whole-package testing for plastic, rubber, paper/plastic composite, glass and metal containers (e.g., bottles, pouches, Tetra Pak, vacuum bags, cans, cosmetic containers, tubes, cups).
• Extended applications: closures, solar back-sheets, cosmetic tubes, blister packs, automotive fuel tanks, battery housings and other component or complete-package permeability evaluations.

Technical specifications

• Test principle: coulometric sensor (equal pressure) — upper chamber with oxygen/air, lower chamber purged with nitrogen; permeated oxygen measured by coulometric sensor.
• Standards: ASTM D3985, ASTM F1307, ASTM F1927 (option), GB/T 19789, GB/T 31354, DIN 53380-3, JIS K7126-2-B, YBB 00082003-2015.
• Test range (standard): 0.01 ~ 200 cm3/(m2·day) (0.0007 ~ 12.9 cc/(100in2·day)); package mode: 0.00005 ~ 1 cm3/(pkg·day).
• Resolution: 0.001 cm3/(m2·day).
• Repeatability: 0.01 cm3/(m2·day) or 2%.
• Test temperature: 10 ~ 55 °C, ±0.2 °C.
• Test humidity: O2 side: 0%, 5% ~ 90% ±1%, 100%; carrier gas humidity (optional): 0%, 5% ~ 90% ±2%.
• Test chambers: 3 simultaneous channels; specimen size: 108 mm × 108 mm; specimen thickness ≤ 3 mm; standard test area: 50 cm2.
• Carrier gas: high-purity nitrogen 99.999% (not supplied); required pressure ≥ 0.28 MPa (≈ 40.6 psi); port: 1/8" metal tubing.
• Options: package test (max 3 L), DataShield™ software, GMP-compatible computer system, CFR21 Part11 support.
