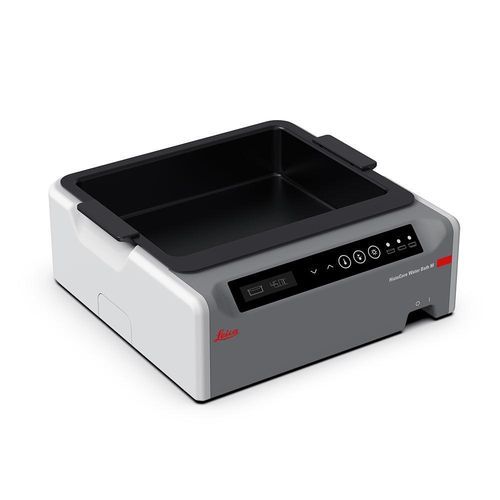

Histopathology water bath HistoCore

for histological sectionsheatingbenchtop

The HistoCore Water Bath M provides a controlled water surface to flatten floating histological ribbons and improve visibility and workflow efficiency during tissue sectioning. It integrates with HistoCore Slide Dryer systems and features an intuitive OLED touch panel for temperature and mode control.

Key features

• Detachable anodized water tray for easy water exchange and improved coating durability
• Black water tray with integrated LED backlight for enhanced contrast to identify ribbons and assess sectioning quality
• OLED touch control panel offering an intuitive interface for water bath and slide dryer management
• Each water bath can supply power to up to 2 slide dryers
• Heating capability up to 60°C
• Integrated control with HistoCore Slide Dryer to enable simultaneous floating and drying while keeping the workstation organized
• OLED control specifics:
  • Touch panel for temperature and operating mode adjustment
  • 3-digit water temperature display
  • Icon indicators showing real-time operating mode
  • Lean display mode to minimize light pollution

Specifications

• Overall device dimensions (operating mode): Water bath: 280 mm x 280 mm x 105 mm
• Slide dryer dimensions: 200 mm x 280 mm x 98 mm
• Water tray dimensions (WxDxH): 230 mm x 180 mm x 53 mm
• Empty weight (without accessories): 3 kg
• Overall weight with accessories: Water Bath: 3 kg; Slide Dryer: 3 kg
• Device weight including packaging: 4 kg
• Heating speed: 20 mins ±10% (220V), standard water volume, from 15°C to 45°C at ambient 18°C
