Optical stereo microscope A60 F

inspectionmedicalflexible arm

Overview
The A60 F and A60 S stereo microscopes are designed for industrial inspection and precision assembly tasks where throughput, clear visualization and ergonomic operation are required. They deliver a wide object field and a magnification range suitable for both overview and fine-detail work.

Your Benefits

• Faster inspection and rework workflows through optimized field of view and handling
• Improved visibility of components with a 46 mm object field and consistent sharpness across the field
• Ergonomic design for prolonged use: 38° viewing angle and accessible controls
• Two stand options to match workspace needs: flex arm (A60 F) and swing/boom arm (A60 S)

Key Features

• Magnification range: 5×–30× for overview and detailed observation
• Large object field: 46 mm for increased sample surface visibility
• High depth of field: up to 13.6 mm (FusionOptics™ technology), reducing refocusing during inspection
• Working distance: up to 122 mm to allow tool access and rework/soldering
• Illumination: LED ring illuminator, color-neutral spectrum, removable diffuser; two illumination modes for matte and reflective specimens
• LED lifetime: approx. 50,000 hours for reduced maintenance
• Ergonomics: 38° viewing angle, easily reachable zoom/focus knobs, adjustable focus rheostat; suitable for left- and right-handed users
• ESD-protected design option for use in electrostatic-sensitive environments
• Interchangeable protective glass to shield optics from fumes and contaminants

Available Configurations & Highlights

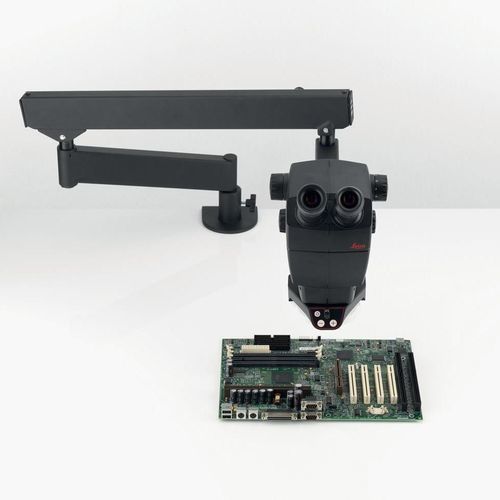

• A60 F (flex arm): table clamp mounting, compact footprint, quick x/y positioning and height adjustment
• A60 S (swing/boom arm): boom/swing arm for high stability, suited to larger or repetitive samples and higher magnifications; base includes grounding point

Applications / Typical Use Cases

• Inspection, assembly, rework and quality control in electronics and semiconductor manufacturing
• Medical device production and inspection (e.g., stent inspection) requiring precise visualization
• Watchmaking, micro-manufacturing and other precision assembly tasks with extended operator use

Technical specifications

• Model family: A60 (variants A60 F and A60 S)
• Magnification: 5×–30×
• Object field: 46 mm
• Depth of field: up to 13.6 mm (approx.)
• Working distance: up to 122 mm
• Viewing angle: 38°
• Illumination: LED ring illuminator, color-neutral/daylight spectrum; removable diffuser; two illumination modes
• LED lifetime: approx. 50,000 hours
• Stand options: Flex arm (A60 F) and Swing/Boom arm (A60 S)
• Design features: optional ESD-protected design; interchangeable protective glass; ergonomic controls (accessible zoom/focus; adjustable focus rheostat)
• Typical industries: electronics & semiconductor, medical device manufacturing, automotive & aerospace, watchmaking, industrial microscopy
