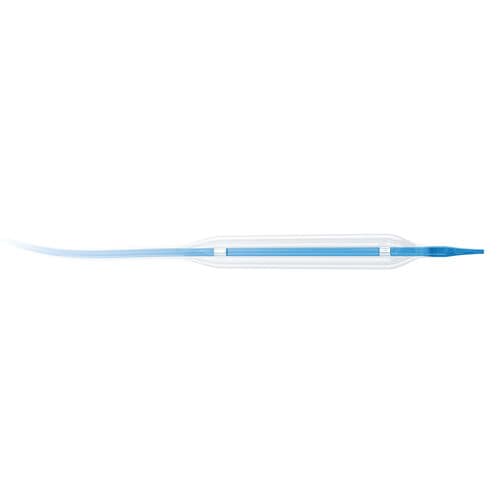

PTCA catheter Hoper

coronaryballoon3 FR

Product description

• Small tip profile for improved crossability in tortuous anatomy.
• Three-directional memory folding of the balloon minimizes folded profile and supports consistent re-folding for repeated dilatation.
• Soft tapered tip provides a smooth transition from guidewire to balloon catheter to reduce risk of vessel trauma and avoid fish‑mouth formation.
• Transparent hub allows visual inspection for air bubbles to help reduce procedural risk.

Product features

• 0.017 in soft tapered tip
• 2 swaged platinum radiopaque markers
• 3‑directional memory‑fold balloon
• Good re‑folding capability
• Excellent withdrawal ability
• Transparent hub

Ranges

• Diameter: Ø 1.5–4.0 mm
• Balloon lengths: 9–30 mm (multiple lengths)

Advantages

• Soft construction with pressure resistance suitable for controlled dilatation
• Accurate diameter control across available sizes

Specifications
Technical parameters
Catheter design: Rapid Exchange
Balloon compliance: Semi‑compliant
Markers: 2 platinum markers
Distal shaft O.D.: 2.8F
Proximal shaft O.D.: 2.3F
Tip profile: 0.017 in soft tapered tip
Minimum guiding catheter compatibility: 5F
Guide wire compatibility: 0.014 in
Effective length: 135 cm
Nominal pressure: 8 atm / 6 atm (size dependent)
Rated burst pressure: up to 16 atm (14 atm for Ø 4.0 mm)

Ordering information
Product registration and availability vary by country.
