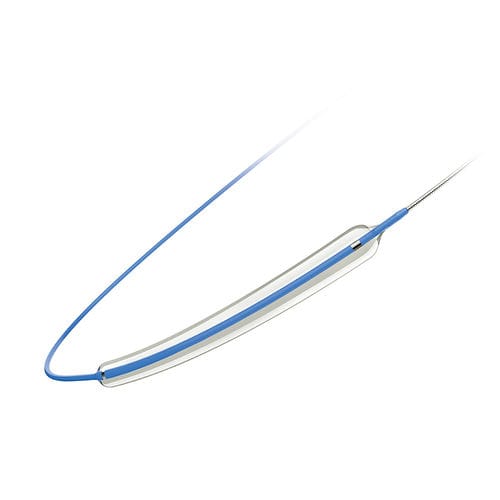

PTA catheter Supercross™

peripheralballoonatraumatic tip

Product Description

• High-performance balloon material: semi-compliant nylon; puncture- and abrasion-resistant.

Controlled balloon compliance for accurate vessel sizing.
Rigorous fatigue testing ensures consistent quality.

• Flexible tapered tip

Combined with a low-profile system to maintain trackability across tortuous lesions.
The tapering process ensures consistently smooth insertion and atraumatic navigation.

• Deliverability and handling

Compatible with 6F introducer.
Strong pushability and superior kink resistance combined with flexibility.

• 5F dual-lumen shaft (OTW)

Single dedicated inflation lumen allows rapid deflation times (3–6 s).

• 6-folding balloon

Good refolding behavior even after multiple inflations.

Product Features

• Flexible tapered tip ensures smooth insertion and atraumatic navigation.
• Low crossing profile enables passage through tight lesions.
• Over-the-wire (OTW) design provides torque control, kink resistance and pushability for controlled deliverability.
• Dual-lumen OTW shaft separates inflation and guidewire lumens to support rapid deflation performance.
• Memory folding technique supports reliable refolding and repeated dilatations.

Specifications
Technical Parameters (Rapid Exchange - RX)
Catheter Design | Rapid Exchange (RX)
Balloon Compliance | Semi-compliant
Marker | 2
Material | Nylon
Nominal Pressure | 7 atm
Distal Shaft O.D. | 2.8F
Proximal Shaft O.D. | 2.3F
Lowest Crossing Profile | 0.025″
Effective Length | 135 cm
Minimum Guiding Catheter Compatibility | 5F (0.056″)
Guide wire Compatibility | 0.014″

Catheter Parameters (Over the Wire - OTW)
Catheter Design | Over the Wire (OTW)
Balloon Compliance | Semi-compliant
Marker | 2
Material | Nylon
Nominal Pressure | 7 atm
Distal Shaft O.D. | 5F
Lowest Crossing Profile | 0.060″
Effective Length | 80 cm / 135 cm
Minimum Introducer Sheath Compatibility | 5F / 6F / 7F
Guide Wire Compatibility | 0.035″

Ordering Information
Available balloon diameters: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0, 8.0, 9.0, 10.0, 12.0 mm.
Available balloon lengths: 20, 30, 40, 60, 80, 100, 120 mm.
Configurations: Rapid Exchange (RX) and Over the Wire (OTW) with multiple diameter/length combinations and specific order codes (examples: PTAR20020 for RX 2.0×20 mm; PTAO30060 for OTW 3.0×60 mm).

Technical specifications

• Balloon: high-performance nylon, semi-compliant; nominal pressure 7 atm; 2 radiopaque markers.
• RX shafts: distal 2.8F / proximal 2.3F; lowest crossing profile 0.025″; effective length 135 cm; guidewire compatibility 0.014″; minimum guiding catheter 5F.
• OTW shafts: distal 5F; lowest crossing profile 0.060″; effective lengths 80 cm and 135 cm; introducer compatibility 5F/6F/7F; guidewire compatibility 0.035″.
• OTW dual-lumen shaft with dedicated inflation lumen for rapid deflation (3–6 s).
• Design emphasis on tapered tip, low profile, trackability, pushability, kink resistance and memory folding for repeated dilatations.
