Polyethersulfone dialyzer OCI-HD13M

polycarbonatehollow-fiberhigh-flux

Intended use
Treatment of acute or chronic renal failure by extracorporeal hemodialysis to remove metabolic waste (urea, creatinine), β2-microglobulin, phosphate and excess fluid.

Key features

• Polyethersulfone (PES) hollow-fiber membrane designed for high-flux clearance of small, middle and large molecules
• Good biocompatibility
• Continuous toxin clearance capacity with low albumin loss
• Housing and potting materials engineered for secure assembly and safe use
• Available in multiple surface areas and chamber volumes to match clinical prescriptions

Specifications

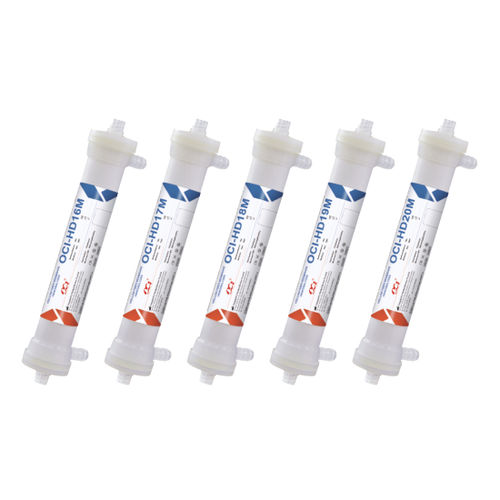

• Models: OCI-HD13M, OCI-HD15M, OCI-HD16M, OCI-HD17M, OCI-HD18M, OCI-HD19M, OCI-HD20M, OCI-HD21M, OCI-HD22M, OCI-HD23M, OCI-HD24M, OCI-HD25M
• Surface area: 1.3–2.5 m² depending on model
• Ultrafiltration coefficient (mL/h·mmHg): 39–77 depending on model
• Chamber volume: 84–146 mL depending on model
• Membrane material: Polyethersulfone (PES)
• Housing material: Polycarbonate (PP)
• Potting compound: Polyurethane (PU)
• Test conditions: T = 37℃, QD = 500 mL/min, QF = 10 mL/min (in vitro simulation)

Performance (solute clearance)

• Urea (mL/min): QB 200: ~180–199; QB 300: ~259–295; QB 400: ~292–364
• Creatinine (mL/min): QB 200: ~164–190; QB 300: ~239–270; QB 400: ~259–295
• Phosphate (mL/min): QB 200: ~164–203; QB 300: ~244–277; QB 400: ~284–324
• Vitamin B12 (mL/min): QB 200: ~129–162; QB 300: ~159–193; QB 400: ~168–216

Screening coefficients & operational ranges

• Albumin screening coefficient: ≤ 0.01
• β2-microglobulin screening coefficient: 0.8 ± 0.2
• Inulin screening coefficient: 0.9 ± 0.1
• Blood flow range: 200–400 mL/min
• Dialysate flow range: 500–800 mL/min
• Maximum TMP: 66.5 kPa / 500 mmHg

Sterilization & shelf life

• Irradiation sterilization; shelf life: 3 years
