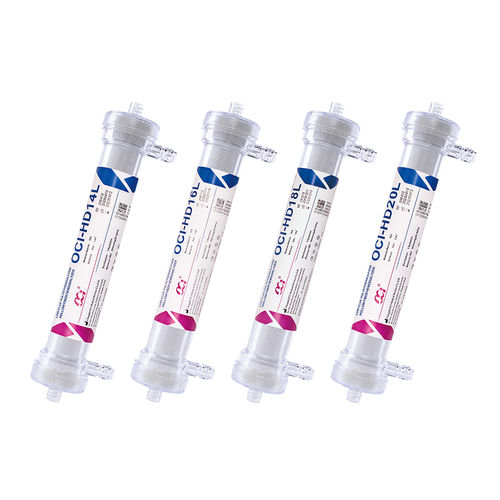

Polyethersulfone dialyzer OCI-HD series

polycarbonatehollow-fiberlow-flux

Product Description:
Low-Flux Polyethersulfone (PES) hollow-fiber hemodialyzer PC Series available with four surface area options: 1.4, 1.6, 1.8 and 2.0 m². Designed for routine chronic hemodialysis treatments with controlled ultrafiltration and consistent solute clearances.

Product Features:

• Good biocompatibility
• Good endotoxin adsorption capacity
• Good removal rate of small molecules
• Improved design, enhanced diffusion effect
• Good phosphate clearance rate

Specifications (table):
Model: OCI-HD14L | OCI-HD16L | OCI-HD18L | OCI-HD20L
Ultrafiltration coefficient (mL/h·mmHg): 11 | 16 | 17 | 18
Surface Area (m²): 1.4 | 1.6 | 1.8 | 2.0
Chamber volume (mL): 90 | 105 | 118 | 130
Membrane material: Polyethersulfone (PES)
Housing material: Polycarbonate (PC)
Potting compound: Polyurethane (PU)
Clearances (mL/min) — Test conditions QD = 500 (mL/min). For each model values correspond to Qb = 200 / 300 / 400 (mL/min):
Urea (Qb 200 / 300 / 400): 180 / 216 / 252 | 183 / 220 / 256 | 188 / 226 / 263 | 192 / 230 / 268
Creatinine (Qb 200 / 300 / 400): 170 / 204 / 221 | 175 / 210 / 227 | 180 / 216 / 234 | 183 / 219 / 237
Phosphate (Qb 200 / 300 / 400): 160 / 176 / 208 | 163 / 195 / 253 | 167 / 200 / 217 | 172 / 190 / 223
Vitamin B12 (Qb 200 / 300 / 400): 80 / 88 / 94 | 91 / 100 / 105 | 102 / 112 / 122 | 113 / 124 / 129
Blood flow range (mL/min): 200-400 (all models)
Dialysate flow range (mL/min): 500-800 (all models)
Maximum TMP (kPa/mmHg): 66.5 / 500
Disinfection Method: Irradiation sterilization, valid for three years

Technical Specifications:

• Series: PC Series Low-Flux Polyethersulfone Hollow-Fiber Hemodialyzer
• Models: OCI-HD14L, OCI-HD16L, OCI-HD18L, OCI-HD20L
• Surface area options: 1.4 m², 1.6 m², 1.8 m², 2.0 m²
• Ultrafiltration coefficient (mL/h·mmHg): 11 / 16 / 17 / 18 (by model)
• Chamber volume (mL): 90 / 105 / 118 / 130 (by model)
• Membrane material: Polyethersulfone (PES)
• Housing material: Polycarbonate (PC)
• Potting compound: Polyurethane (PU)
• Clearances for Urea, Creatinine, Phosphate, Vitamin B12 provided at Qb = 200/300/400 mL/min per model (see table above)
• Blood flow range: 200-400 mL/min
• Dialysate flow range: 500-800 mL/min
• Maximum TMP: 66.5 kPa / 500 mmHg
• Disinfection: Irradiation sterilization (valid for three years)
