Medical gas manifold BASELINE® S 100

for laboratoryfor hospitalssupply

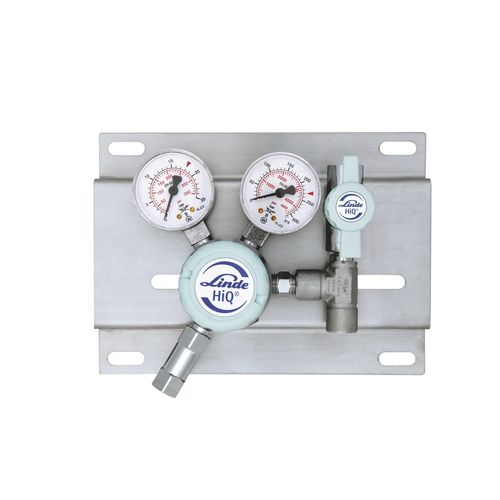

Our BASELINE portfolio includes the full range of equipment required for centralized gas distribution systems. BASELINE stretches from wall-mounted automatic switchover gas panels to shut-off valves and furniture-mounted point-of-use regulators. All BASELINE devices are designed for use with high-purity gases up to 5.0 (99.999%) grade and gas mixtures with component content at % level. Our BASELINE portfolio includes single panels for centralized supply of gases with purities up to 5.0 grade The S 100 manual gas panel is designed to handle a single bank with cylinders or bundles containing compressed or condensed gases. It is mounted on a stainless steel console and consists of a pressure regulator, inlet and outlet pressure gauges and a relief valve. If required, the panel can be equipped with an inductive contact gauge. Inlet and outlet shut-off valves or check valves can be mounted. The maximum primary pressure is 230 bar (3,336 psi) and the outlet pressure ranges from 2.5 bar (36 psi) to 14 bar (203 psi). The S 101 manual gas panel is suited to a single bank with cylinders or bundles containing compressed or condensed gases. The panel is equipped with internal gas purging to avoid contaminants entering the process line after a cylinder changeout. It is mounted on a stainless steel console and consists of a pressure regulator, inlet and outlet gauges and a relief valve. The panel can be equipped with inductive contact gauges for automatic monitoring. If required, inlet and outlet shut-off valves or check valves are available. The maximum primary pressure is 220 bar (3,336 psi) and the outlet pressure range goes from 2.5 bar (36 psi) to 14 bar (203 psi).
