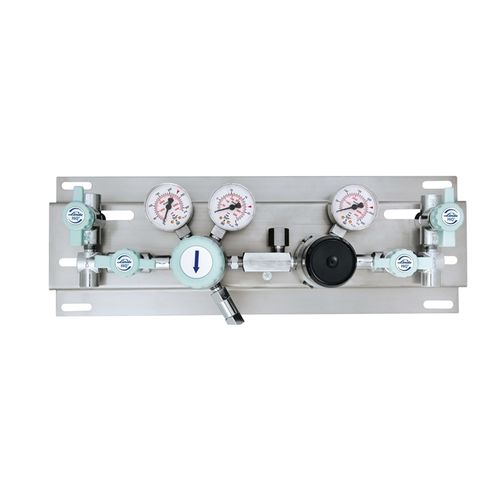

Laboratory manifold BASELINE® A 107

for hospitalssupplysemi-automatic

Our BASELINE semi-automatic panels are designed for uninterrupted supply of compressed or condensed gases. Like manual panels, semi-automatic gas panels reduce the high primary pressure in the cylinders to the required secondary pressure at the point of use. When the pressure on one side falls below a preset level, the system switches over automatically to the other connected packages. This is achieved by means of two integrated regulators (factory-set to slightly different delivery pressure levels), which are connected at their outlet ports. The A 107 semi-automatic panel is designed for uninterrupted supply of compressed or condensed gases. This panel is mounted on a stainless steel console and consists of two pressure regulators, inlet and outlet gauges and a relief valve. A 107 semi-automatic gas panels can either be equipped with inlet shut-off valves for all gases or inlet check valves for all but oxidizing gases and gas mixtures. The panel can be fitted with inductive contact gauges. The maximum primary pressure is 230 bar (3,336 psi) and the outlet pressure is 14 bar (203 psi). This semi-automatic gas panel delivers uninterrupted supplies of compressed or condensed gases. The panel is mounted on a stainless steel console and consists of two pressure regulators, inlet and outlet gauges and a relief valve. A 108 semi-automatic gas panels are equipped with purge-out lines and can either be equipped with inlet shut-off valves for all gases or inlet check valves for all but oxidizing gases and gas mixtures. This panel can be fitted with inductive contact gauges. The maximum primary pressure is 230 bar (3,336 psi) and the outlet pressure is 14 bar (203 psi).
