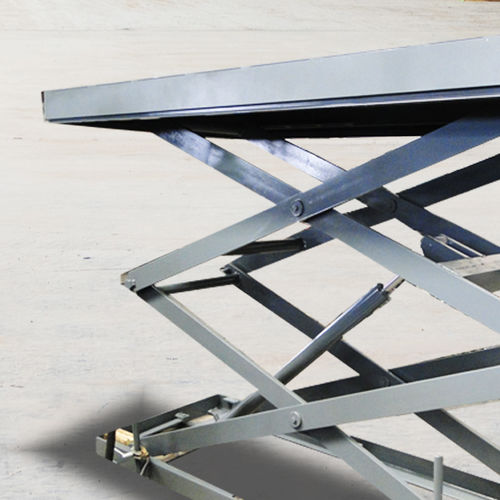

Floor-mounted lifting platform

Description
Hydraulic lift tables are designed to facilitate loading and to bridge level differences for the movement of goods in factories, warehouses, laboratories and distribution centers. They are manufactured to order and adapted to project requirements, ensuring safe vertical transfers and ergonomic handling for industrial and logistics operations.

Main specifications

• Load capacity: up to 10,000 kg
• Maximum manufacturable length: up to 5 m
• Lifting stroke: 0.60 × table length
• Platform: smooth or tread plate, non-slip
• Finish options: stainless steel, hot-dip galvanized, painted or combinations

Optional equipment

• Table types: single, double, multiple
• Available travel: 800–1,600 mm depending on model
• Lower frame for floor fixing
• Retractable lip or hinged lip options
• Custom load capacities and dimensions on request

Applications and installation advice

• Suitable for industrial, sanitary, commercial and food sectors
• Installed indoors or outdoors where level differences must be overcome
• For vertical movements above 3 m evaluate use of a freight elevator instead of a lift table

Technical features

• Designed for heavy transit and frequent use
• Constructed in smooth or teardrop sheet metal
• Compliant with applicable safety standards; project-specific risk assessment recommended

FAQ (summary)

• What information is needed for a quote? — Load type, required lifting height and maximum load weight
• Can the table be installed recessed? — Yes, extraflat models are available for flush installation
