Overview

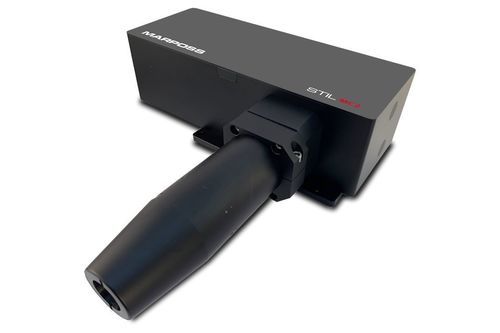

The ChromaLine camera is a chromatic confocal line-scan system for non-contact surface measurement and inspection. It combines chromatic confocal microscopy principles with a high-speed 4K line detector to produce sharply focused profiles across an extended depth of field (up to several millimetres) while acquiring up to 199,500 lines per second. The system removes the need for complex Z-scanning or autofocus on samples with significant Z extension.

Detailed description
ChromaLine integrates a slit illuminated by a polychromatic white LED source (external Chromalight box), a chromatic lens, a beam splitter and a high-speed line detector (SW-4000M-PMCL). The optical configuration delivers a focused image and accurate height profiling across an extended depth of focus. Typical acquisition capability reaches 199,500 lines/s depending on configuration.

Benefits

• Inspection of any material that reflects white light (metal, glass, plastics, paint films, liquids).
• Industrial robustness: optical head built exclusively with passive components.
• High-speed acquisition: up to 199,500 lines/s with the high-speed line-scan camera.
• Micrometric lateral detection and sub-micron profiling on suitable configurations.
• Suitable for Automatic Optical Inspection (AOI) in OEM production lines.

Applications

• Automotive glass inspection
• Glass containers and packaging industry
• Electric vehicle industry (battery cover and cell inspection)
• Roll-to-roll measurement of transparent and opaque films (e.g. EV battery covers, flexible electronics)
• Scratch and dig inspection
• Electronics industry (PCB inspection)
• Semiconductor industry (silicon wafer inspection)
• Consumer components and CCC industry
• Medical device inspection
• Micromechanics
• Aviation and aerospace
• Watchmaking
• Robotics and automation

Versions
Standard ChromaLine cameras are available in five versions: NANOVIEW, MICROVIEW, WIREVIEW, DEEPVIEW mk2 and SUPERVIEW. Options range from high numerical aperture configurations (e.g. NA 0.7) to extended line widths up to 12.85 mm. Minimum lateral resolution can reach 0.43 µm on the sample depending on optics; maximum acquisition rate is 199,500 lines/s. OEM-customized versions are available for specific integration requirements.

Caractéristiques / Spécifications techniques

• Controller: MC2
• Technology: Chromatic Confocal
• Source: White LED (external box, Chromalight)
• Fiber bundle length: 5 m
• Operating temperature: 0°C - 65°C
• Storage temperature: -30°C - 70°C
• Relative humidity: 5% - 80% RH (without condensation)
• Protection type: IP20 (ChromaLight) / IP50 (Body)
• Line detector camera: SW-4000M-PMCL
• Number of pixels (camera): 4096
• Number of used pixels: ≈ 3100
• Pixel size: 7.5 µm
• Line rate: up to 199.5 kHz
• Control and data interface: Camera Link (x2)
• Power supply (camera): 5 - 24 Vdc
• Power dissipation (camera): 5 W
• Chromalight (LED source) power supply: 100 - 240 Vac
• Chromalight maximum/usual consumption: 100 W / 60 W
• Dimensions (camera body): 235.5 x 184.2 x 255.5 mm
• Weight (camera body): 4 kg
