Container leak tester T3P

for packagingfor seal integrityabsolute pressure decay

Description

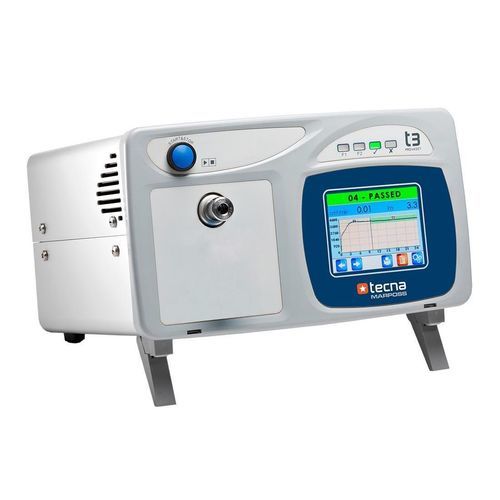

T3P is a test instrument for leak detection using the absolute pressure decay method. The unit features a colour touchscreen interface with real-time test visualization for straightforward programming and operation. High measurement resolution and precise control of filling pressure enable leak testing, destructive burst tests, safety valve opening checks, volumetric control, obstruction checks and "in bell" sealed-product tests or interception-method tests. Connectivity for external automation, barcode readers, printers and data logging via USB or Ethernet makes the T3P suitable for modern production lines.

Applications

• Leak testing on sealed products
• Destructive burst testing
• Safety valve opening verification
• Volumetric control and obstruction testing
• In-bell tests and interception method inspections

Key benefits

• Double channel circuit
• Configuration for vacuum testing
• Two programmable pneumatic outputs for external commands (coupler/marker)
• I/O expansion: adds digital PLC inputs/outputs (8+8) and RS232/RS485 serial line
• Additional interfaces: USB, Ethernet, ProfiBUS or CANbus for remote control and data acquisition
• Real-time SPC statistical analysis
• Software support for label printers and barcode readers
• Air filters
• Certificated Leak Master for insertion in Staubli® connector
• Holders for burst testing
• Barcode reader and/or printer support
• Remote control keypad
• Three-colour indicator light with loud audible alert
• External pneumatic module for vacuum generation
• External valve for volume checks and sealed "bell" tests
• Module for external discharge

Technical specifications

• Power supply: External 24 Vdc; alternatively 85÷264 Vac, 35 W
• Compressed air: Dry, non-condensing, 5-micron filtered, oil-free, compliant with ISO8573-1
• Sensor calibration: Software-guided procedure with primary instruments
• A/D converter: 24 bits
• Pressure regulator: Dedicated pressure transducer to display regulated pressure; electronic or manual regulator available
• Keyboard: Resistive touchscreen
• Display: 3.5" colour TFT LCD with touchscreen
• Indicators: 4 LEDs (test phases, pass/reject)
• Test counter: Pass and reject totals, resettable; optional statistics: mean, min, max, standard deviation, normal distribution, Cp, Cpk, hourly production totals
• Audible alarm: Built-in beeper with programmable duration
• Clock: Date and time with supercap, up to 7 days autonomy
• Programmable parameters: 100 test tables with sequential mode; general parameters; volume calculation to report leak rate in cm3/min or cm3/h
• PLC connections: 8 photocoupled inputs and 8 photocoupled outputs; each I/O fully programmable; control external automation without PLC
• Data interfaces: Configurable RS232/RS485; USB device interface; protocols: Modbus RTU, CSV ASCII output, barcode, printer
• Staubli® connector: Standard for Leak Masters
• Housing: Unpainted anodized aluminium and ABS
