Valve leak tester T3D

for containersfor packagingfor seal integrity

Product overview

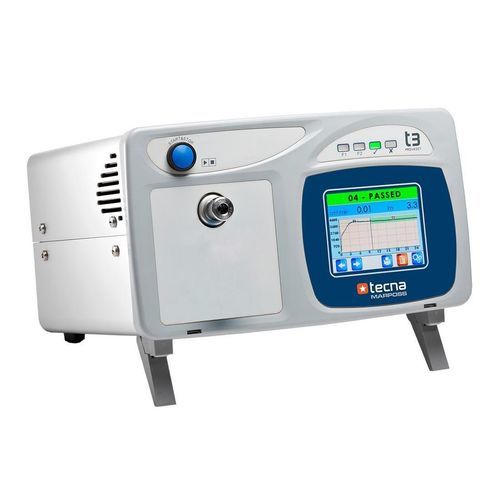

T3D is a differential-pressure leak tester that measures the pressure difference between the test piece and a reference sample to reduce test time and increase sensitivity.

Description
The resistive touchscreen with 3.5" colour TFT display provides real-time test visualization and simplified programming. High measurement resolution and accuracy, combined with electronic control of filling pressure, enable leak tests, destructive burst tests, safety valve opening checks, volumetric control, obstruction tests and "in‑bell" sealed-product tests by interception method. Control of external automation, interfaces with barcode readers and printers, and the ability to record tests on USB media or via Ethernet make the instrument suitable for modern production lines.

Benefits

• Setup for vacuum test
• 2 programmable pneumatic outputs for external commands (plug/marker)
• I/O expansion: adds digital PLC inputs/outputs (8+8) and an RS232/RS485 serial line
• Additional USB, Ethernet, ProfiBUS or CANbus interfaces for remote control and data collection
• Real time SPC statistical analysis
• Software to manage a label printer and a barcode reader
• Air filters
• Certificated Leak Master to be inserted in the Staubli® connector
• Barcode and/or printer
• Remote control keypad
• 3-colours indicator light with loud sound alert
• External pneumatic module for vacuum generation
• External valve for volume check and tests in sealed "bell"
• Module for external pressure discharge

Technical specifications

• Power supply: External 24 Vdc or 85÷264 Vac, 35W
• Compressed air: dry, non-condensing, 5-micron filtered, oil-free (ISO8573-1)
• A/D converter resolution: 24 bits
• Pressure regulation: electronic or manual with dedicated transducer and display visualization
• Interface: 3.5" colour TFT touchscreen; resistive touch keyboard
• I/O: 8 photocoupled inputs + 8 photocoupled outputs, expandable I/O, RS232/RS485
• Data: USB, Ethernet, ProfiBUS or CANbus options; Modbus RTU and CSV ASCII output
• Test capacity: 100 testing tables, volume calculation in cm3/min or cm3/h
• Indicators and alarms: 4 LED status lights, built-in programmable beeper
• Statistics: SPC analysis (mean, min, max, std. dev., normal distribution, CP, CPK, hourly totals)
• Connectivity for peripherals: barcode reader and label printer support
• Standard Staubli® connector for Leak Masters
• Housing materials: anodized aluminium and ABS
