Packaging leak tester T3PF

pressureabsolute pressure decayelectro-pneumatic

Overview

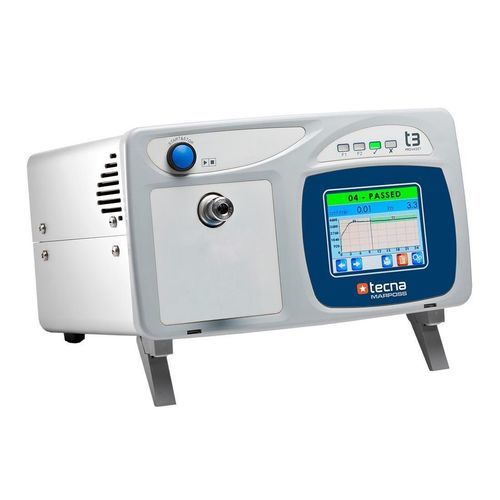

Provaset T3PF is an electro-pneumatic instrument for air flow measurement and leak testing (absolute pressure decay). It uses an electronic pressure regulator to apply programmed test pressures and includes a 3.5" colour touchscreen for real-time test monitoring and straightforward programming. Designed for testing benches, production lines and fully automatic systems, T3PF supports external automation, barcode readers and printers, and records test data via USB or Ethernet.

Main functional highlights

• Electro-pneumatic instrument for flow measurement and leak testing (absolute pressure decay)
• Electronic pressure regulator for programmed pressure control
• 3.5" resistive touch interface with real-time testing view for intuitive operation
• Suitable for use on testing benches, production lines and fully automatic systems
• Interfaces for barcode readers, printers and data recording (USB/Ethernet)

Benefits / Options

• Two programmable pneumatic outputs for external commands (coupler/marker)
• Configuration for vacuum testing and external vacuum module option
• I/O expansion: adds 8+8 digital PLC photocoupled inputs/outputs and RS232/RS485 serial line
• Additional communication interfaces available: USB, Ethernet, ProfiBUS or CANbus
• Real-time SPC statistical analysis and production statistics
• Software support for label printers and barcode readers
• Optional air filters and certified Leak Master for Staubli® connector
• Support for barcode reader and/or printer, remote control keypad, 3-colour indicator light with audible alert
• External valve for controlled pressure discharge

Technical specifications

• Power supply: External 24 Vdc; alternatively 85–264 Vac, 35 W
• Compressed air: Dry, non-condensing, 5 µm filtered, oil-free, compliant with ISO8573-1
• A/D converters: 24 bits
• Calibration: Certificates for pressure and flow sensors; software-guided calibration procedure
• Pressure regulator: Electronic
• Keyboard / Display: 3.5" resistive touch TFT colour display
• Indicators: 4 LEDs (test phases, pass/reject)
• Test counter & statistics: Pass/Reject totals (resettable); mean, min, max, std. dev., normal distribution, CP, CPK, hourly production totals
• Audible alarm: Built-in beeper, programmable duration
• Clock: Date/time with supercap, up to 7 days autonomy
• Programmable parameters: 100 test tables (sequential mode), volume-based leak rate display (cm3/min or cm3/h)
• PLC connections: 8 photocoupled inputs + 8 photocoupled outputs, fully programmable
• Data interfaces & protocols: Configurable RS232/RS485; USB device interface; Modbus RTU, CSV ASCII output, barcode, printer
• Staubli® connector: Standard for Leak Master insertion
• Housing: Anodized aluminium (unpainted) and ABS components
