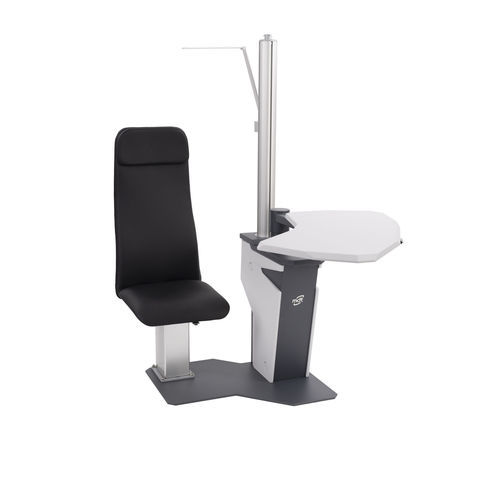

Ophthalmic workstation UNIQ

with chaircompact

Product overview
Compact ophthalmic refraction unit designed for space-efficient examination rooms. This is a medical device. Use it in accordance with the instructions for use or the product label. EU Declaration of Conformity provided.

Technical specifications

• Equipped with electrically elevated SLIM chair (black upholstery only)
• Chair height adjustment switch located on the tabletop
• V-shape, fixed-height, non-extendable tabletop for 2 instruments; optional universal chin rest adapter
• ALU post suitable for installation of chart projector and PA-1000 phoropter arm (option)
• Tabletop electromagnet lock switch hidden under the auxiliary tabletop
• Efficient, foldable and revolving LED lamp with manual switch
• Right-handed configuration as standard; left-handed available on order or during on-site installation
• Side casings and tabletop painted in RAL7047
• Front casing and auxiliary tabletop painted in RAL7024
• Steel base powder coated in RAL7024
• EU Declaration of Conformity provided

Optional extras
To keep competitive pricing the number of optional features is limited:

• Footrest for SLIM chair – n/a
• COMFORT chair – n/a
• PA-1000 counterbalanced phoropter arm equipped with a gas spring
• PA-3000 – n/a
• Elevated tabletop – n/a
• Customised main body colours – n/a
• Customised upholstery colours – n/a
• Pivotal arm with trial lenses tray and cassette
• Chart projector shelf
• Left-handed setup (factory preset or during on-site installation)
• CBS-1000 Control Box Stand
• Ophthalmoscope/retinoscope rack
• Universal chin rest adapter

Additional Safety Note
Additional Safety Note 2023-04-24: According to the Instructions for Use of all refraction units manufactured by MDT, in patient chairs equipped with footrests the footrests are intended to support the patient’s feet during examination. Chairs are delivered with the footrest raised for transport; after installation the footrest must remain open and used in that position while the patient is seated. It is not permitted to move the chair up or down with the footrest in the raised position. When operating electro-mechanical parts of the unit, ensure the patient’s head, hands and legs are clear of any moving components (including chair movement, armrests if applicable, tabletop or phoropter arm sliding and rotating).
