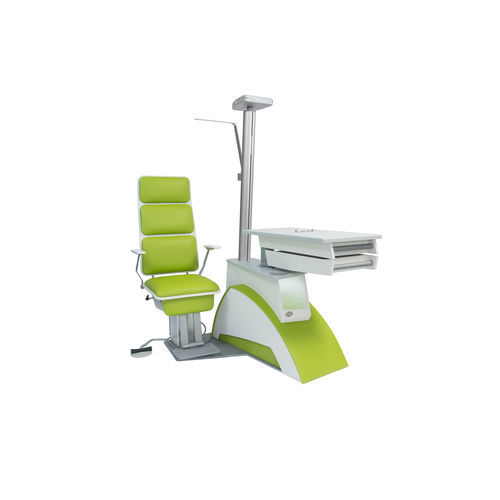

Ophthalmic workstation SMART PLUS

with chairwith LED lightcompact

Short description
Smart design combined with ergonomics and a full range of optional equipment. Offered in right-handed setup only. This is a medical device. Use it in accordance with the instructions for use or the label.

Product tech spec

• SMART PLUS equipped with electrically elevated COMFORT chair (swivel and reclining systems – optional)
• 2 instruments sliding table top with optional electrical height adjustment
• Auto-refractor/Keratometer, slit lamp DC power supply and adjusting knobs for slit lamp illumination built into the table top
• Simple connection of different types of slit lamps: LED / halogen
• Convenient control panel and easily accessible trial lenses tray with pivotal arm
• Diagonal aluminium post with illumination LEDs and chart projector shelf
• Wide selection of upholstery colours available without a surcharge
• Right-handed setup only
• Steel base powder coated
• EU Declaration of Conformity provided

Product options

• Reclination of COMFORT chair 33° (±1,5°)
• Rotation of COMFORT chair 85° (±3°)
• PREMIUM chair with foldable armrests and footrest, electrically elevated, reclining/swivel system built-in
• PA-1000 counterbalanced phoropter arm (equipped with gas spring)
• Table top electrically elevated equipped with safety device
• Customised main body colours
• Data transfer ports (USB 2.0, RS-232)
• CBS-1000 Control Box Stand
• Ophthalmoscope/retinoscope rack

Dimensions
| COMFORT CHAIR | PREMIUM CHAIR
Width | 1 122 – 1 442mm | 1 107 – 1 442mm
Depth | 1 536 – 1 644mm | 1 596mm
Height | 1 786mm | 1 786mm
Chair working range | 493 – 693mm | 507 – 707mm
Table top dimensions | 900 x 440mm | 900 x 440mm
Table top height (fixed) | 878mm | 878mm
Table top working range (height adjustable) | 878 – 978mm | 878 – 978mm

Technical specification
Supply voltage: 100 – 240V AC, 50/60Hz
Power: 280VA
LED lamp power: 9W
Power supply cord: 3m with UniSchuko plug
Max. table top load: 50kg
Max. chair load: 150kg
Max. power of devices supplied from F-type sockets: 450VA
Power supply voltage at the table top sockets (SL/AUX1): 2.5 – 24V DC
Supply current of the slit lamp fixator: 0–100mA (LED) or 0–250mA (bulb)
Packaging: 1 pallet, 120x80x160cm, ca. 175–225kg (gross)

Available colours
Wide selection of upholstery colours available without a surcharge.

Additional safety note
Footrests on patient chairs are designed to be used as support during examination; chairs are delivered with footrests raised for transport only and should be left open during use. Do not move the chair up or down with the footrest raised. While using electromechanical parts, ensure patient position prevents contact with moving parts (chair movement, armrest, table top, phoropter arm sliding/rotating).

Technical data

• Model: SMART PLUS
• Supply voltage: 100–240V AC, 50/60Hz
• Power consumption: 280VA
• LED lamp power: 9W
• Table top dimensions: 900 x 440mm
• Table top working range: 878 – 978mm
• Chair working range (COMFORT): 493 – 693mm
• Chair working range (PREMIUM): 507 – 707mm
• Max. table top load: 50kg
• Max. chair load: 150kg
• Power supply cord: 3m with UniSchuko plug
• Package gross weight approx.: 175–225kg (on pallet 120x80x160cm)
