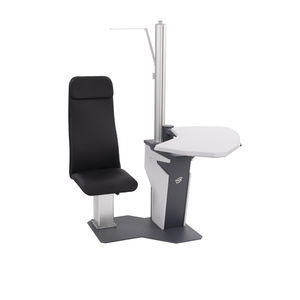

Ophthalmic workstation EASY

with chairwith LED lightcompact

Short description
Compact refraction unit designed for clinical refractive examinations and slit-lamp integration. Includes built-in ref/keratometer functions and power supply for slit lamp devices.

Medical device note
This is a medical device. Use in accordance with the instructions for use and labelling provided.

Key features

• EASY equipped with electrically elevated STANDARD chair (footrest optional)
• 2-instrument sliding table top with fixed height
• Compatibility with various slit lamps: LED or halogen
• Convenient control panel for chair and table functions
• Aluminium post with illumination LEDs and universal chart projector adapter
• Built-in auto-refractokeratometer and slit lamp DC power supply
• Adjusting knobs for slit lamp illumination integrated into the table top
• Steel powder-coated base
• Right- or left-handed onsite setup possible by authorised service partner only

Product options

• Footrest for STANDARD chair

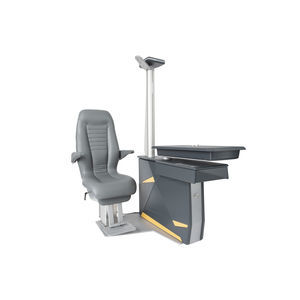

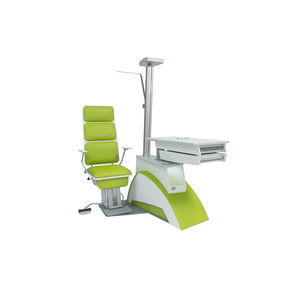

• COMFORT chair electrically elevated with armrests, footrest, reclining & swivel systems
• PA-1000 counterbalanced phoropter arm (gas spring)
• PA-3000 linear phoropter arm (with chair movement switches)
• Wide selection of upholstery colours available (SCURO – grey as standard)
• Trial lenses tray with pivotal arm
• Chart projector shelf
• CBS-1000 control box stand
• Ophthalmoscope/retinoscope rack

Dimensions
STANDARD CHAIR / COMFORT CHAIR
Width: 886 – 1,266 mm / 972 – 1,266 mm
Depth: 1,506 mm / 1,596 – 1,704 mm
Height: 1,682 mm (both chairs)
Chair working range: 427 – 627 mm / 493 – 693 mm
Table top dimensions: 870 x 440 mm (both chairs)
Table top height (fixed): 874 mm (both chairs)

Technical specifications

• Supply voltage: 100 – 240 V AC, 50/60 Hz
• Power: 280 VA
• LED lamp power: 9 W
• Power supply cord: 3 m with UniSchuko plug
• Max. table top load: 50 kg
• Max. chair load: 150 kg
• Max. power from F-type sockets: 450 VA
• Table top socket voltage (SL/AUX1): 2.5 – 24 V DC
• Slit lamp fixator supply current: 0–100 mA (LED) or 0–250 mA (bulb)
• Packaging: 1 pallet, 120 x 80 x 160 cm, approx. 200 kg (gross)

Available colours
Wide selection of upholstery colours available for a surcharge (SCURO – grey is standard).

Safety note
Footrests on chairs are intended as support for the patient’s feet during examination. During transport footrests may be raised; after installation they must be left open and used when the patient is seated. Do not move the chair with the footrest in raised position. Ensure patient limbs and head are clear of moving parts (chair movement, armrests, table top, phoropter arm) during operation.

Certification
EU Declaration of Conformity provided.
