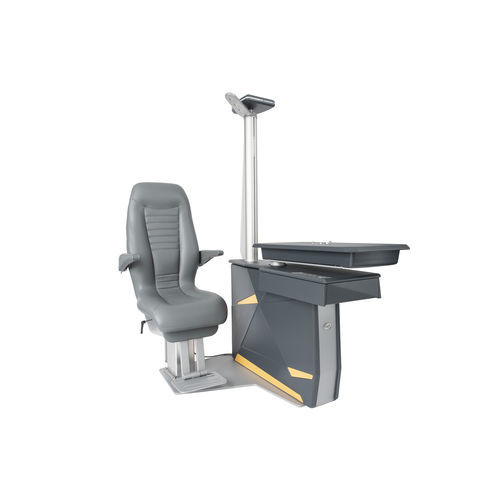

Ophthalmic workstation ECO PLUS

controlwith chairwith LED light

Description
Modern ophthalmic examination unit designed for clinical eye examinations. Configurable for right- or left-handed setup and compatible with various slit lamps and phoropter arms. This is a medical device. Use it in accordance with the instructions for use or the label.

Features

• ECO PLUS equipped with electrically elevated COMFORT chair (optional swivel and reclining systems)
• Two-instrument sliding tabletop with optional electric height adjustment
• Built-in auto-refractor/keratometer, DC power supply for slit lamp and adjustment knobs integrated in the tabletop
• Simple connection for LED or halogen slit lamps
• Accessible control panel and accessories drawer
• Aluminium post with LED illumination and chart projector shelf
• Wide selection of upholstery colours available
• Right-handed configuration standard; left-handed available on request
• Powder-coated steel base
• EU Declaration of Conformity provided

Product options

• Reclination of COMFORT chair 33° (±1.5°)
• Rotation of COMFORT chair 85° (±3°)
• PREMIUM chair with foldable armrests and footrest, electrically elevated with built-in reclining/swivel system
• PA-1000 counterbalanced phoropter arm (gas spring)
• PA-3000 linear phoropter arm (with chair movement switches)
• Electrically elevated tabletop with safety device
• Custom main body colours
• Left-handed configuration available on request
• Data transfer ports (USB 2.0, RS-232)
• CBS-1000 Control Box Stand
• Ophthalmoscope/retinoscope rack

Dimensions
Dimension | COMFORT CHAIR | PREMIUM CHAIR
Width | 1 051 – 1 357mm | 1 037 – 1 357mm
Depth | 1 414 – 1 522mm | 1 373 – 1 481mm
Height | 1 817mm | 1 817mm
Chair working range | 493 – 693mm | 507 – 707mm
Table top dimensions | 880 x 450mm | 880 x 450mm
Table top height (fixed) | 878mm | 878mm
Table top working range (height adjustable) | 878 – 978mm | 878 – 978mm

Technical specification
Supply voltage | 100 – 240V AC, 50/60Hz
Power | 280VA
LED lamp power | 9W
Power supply cord | 3m with UniSchuko plug
Max. table top load | 50kg
Max. chair load | 150kg
Max. power of devices supplied from F-type sockets | 450VA
Power supply voltage at the table top sockets (SL/AUX1) | 2.5 – 24V DC
Supply current of the slit lamp fixator | 0–100mA (LED) or 0–250mA (bulb)
Packaging | 1 pallet, 120x80x160cm, ca. 225–270kg (gross)

Available colours
Wide selection of upholstery colours available (pattern examples provided by the manufacturer).

Additional safety note
Footrests supplied raised for transport must be left open and used lowered during examinations. Do not move the chair with the footrest raised. Ensure the patient's head, hands and legs are clear of moving parts (chair movement, armrest, tabletop, phoropter arm) when using electromechanical adjustments.
