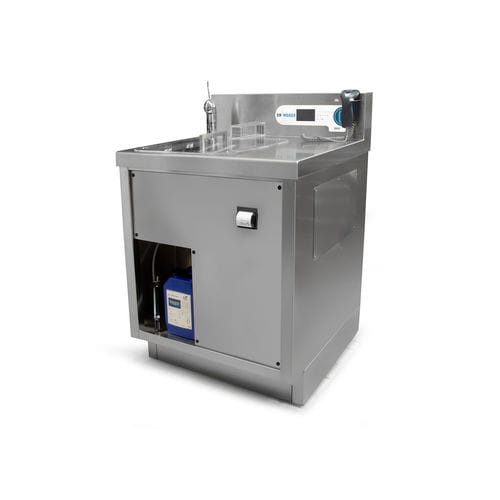

Endoscope washer-disinfector ER-WD223™

reprocessingfor the medical sectorfor instruments

Overview
The ER-WD223™ Endoscope Sink is a Class I medical device designed to support healthcare personnel during the manual washing of flexible endoscopes. The device automates and ensures traceability of washing steps, reducing repetitive operator actions and the risk of error. It is compliant with EN ISO 15883 part 5 annex F for removal of microbial biofilm.

Main functions

• Double-controlled leak test performed at start-up and throughout the washing cycle to prevent instrument infiltration.
• Automatic detergent dosage via internal pump to dose concentrated detergent into the tank and reduce waste/overdosage.
• Validated enzymatic detergents for removal of microbial biofilm according to EN ISO 15883 part 5 annex F: Amity Viruzyme.
• Automatic water dosage: autonomous filling and draining of water in the basin for each phase of the cycle.
• Detersion with forced recirculation and vortex insertion into the washing basin to ensure complete cleansing.
• Flushing of mixed decontaminant/detergent inside all endoscope channels through a special connection kit, including automatic rinsing and purging of channels.
• Complete traceability of cycle data via integrated thermal printer, data download through USB port, Ethernet (optional) or MDG Datatrace dedicated software (optional).
• 4" colour display that guides the operator step by step, showing cycle phase and time remaining for cycle and single phases.
• Standard machine dimensions (WxDxH): 80 x 75 x 115 cm.

Equipment

• Activated carbon filter for disposing of chemical fumes through integrated forced aspiration (optional).
• Standard barcode reader or integrated barcode (optional) or RFID (optional) for reading instrument ID and operator ID.
• Convenient worktop.
• Washing basin standard dimensions: W500 x D500 x H200 mm.
• Transparent plexiglass lid.
• Detergent canister housing with level sensor.
• Clinical lever mixer tap with pull-out hand shower.
• Integrated thermal printer.
• Integrated thermostatic mixer.

ER-WD223/TEE — Specific features
The ER-WD223/TEE™ is designed to support manual disinfection of echo-transesophageal (TEE) probes. It automates disinfection using the correct amount of peracetic acid powder and is validated to EN ISO 15883 part 4 annex F for removal of microbial biofilm.

• Automatic disinfection using peracetic acid-based disinfectant and automatic drainage at cycle end.
• Disinfectant powder validated for removal of microbial biofilm (e.g., MDD HMC 9).
• Disinfection with forced recirculation and vortex insertion into the basin.
• Automatic water dosage and automatic rinsing phases.
• Dedicated support that holds the body of TEE probes outside the washing basin to prevent contact with disinfectant liquids.
• Optional support for pre-washing phases to enable combined cleaning and disinfection of TEE probes and flexible endoscopes.

ER-WD223/D — Specific features
The ER-WD223/D™ is designed to support both manual washing and disinfection of flexible endoscopes and is validated according to EN ISO 15883 parts 4 and 5 annex F.

• Supports both detersion and disinfection with forced recirculation and vortex insertion.
• Automatic detergent and disinfectant dosing (peracetic acid powder for disinfection; example validated powders: MDD HMC 9).
• Flushing of mixed detergent/decontaminant inside all endoscope channels through a special connection kit; automatic rinsing and purging of channels.
• Acid resistant pump and components for handling disinfectants.

MODELS COMPARED
MODEL | FORCED VORTEX RECIRCULATION SYSTEM | CHEMICAL FUMES SUCTION | FLEXIBLE ENDOSCOPES | ECHO-TRANSESOPHAGEAL (TEE) PROBES | SUPPORT FOR MANUAL PRE-WASHING STEPS | SUPPORT FOR MANUAL DISINFECTION STEPS
ER-WD223 | OK | OPTIONAL | OK | NO | OK | NO
ER-WD223/TEE | OK | OPTIONAL | OPTIONAL | OK | OPTIONAL | OK
ER-WD223/D | OK | OPTIONAL | OK | NO | OK | OK

Characteristics / Spécifications techniques

• Device class: Class I medical device.
• Standards: EN ISO 15883 part 5 annex F (ER-WD223), EN ISO 15883 part 4 annex F (TEE / disinfection functions).
• Machine dimensions (WxDxH): 80 x 75 x 115 cm.
• Washing basin dimensions: W500 x D500 x H200 mm.
• Display: 4" colour display with soft touch keyboard for guided operation and status information.
• Traceability: integrated thermal printer; data export via USB; Ethernet optional; MDG Datatrace software optional.
• Detergent dosing: internal pump for automatic concentrated detergent dosing.
• Validated detergents/disinfectants: Amity Viruzyme (enzymatic detergent); MDD HMC 9 (disinfectant powders) as indicated for specific models.
• Leak test: double-controlled leak test at start-up and during cycle.
• Circulation: forced vortex recirculation system for detersion/disinfection.
• Optional features: activated carbon filter (fumes aspiration), barcode/RFID reader, Ethernet connectivity, pre-wash support, acid resistant pumps/components.
