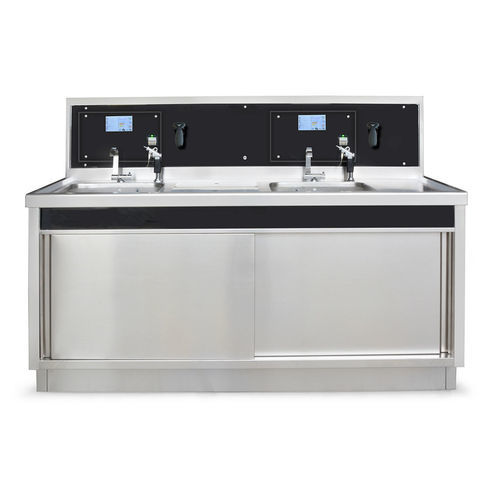

Endoscopy reprocessing pre-cleaning station LV-222™

for endoscopesoptionsstainless steel

Product overview
The LV-222™ endoscope cleaning station is designed to perform automated pre-washing of endoscopes and includes the integrated ER-221 channel reprocessing system. Constructed primarily from stainless steel, the unit autonomously handles filling and draining of water and precise dosing of chemicals for each washing phase to prevent recirculation of contaminated liquids and reduce risk of self-contamination. Ergonomic counters facilitate operator tasks and optimal instrument placement in the basins.

Work space composition

• Basin for chemical dilution and a washing basin equipped with a mixer tap and spray gun for water or compressed air
• Front section equipped with honeycombed sliding doors

Standard dimensions
Standard dimensions (W×D×H): 200 × 95 × 85 cm. LV-222™ is customizable in size and number of washing and dilution basins. The optical barcode reader can be mounted inside a basin.

Sink version
The LV-222™ is also available with a Corian top as an alternative to the standard stainless steel worktop.

Strengths

• Basin for chemical dilution
• Washing basin with integrated instrument/channel connections
• Spray gun for water or pressurized air
• Foldable mixer tap
• Space allocated for automation components
• Honeycomb sliding doors
• Integrated ER-221 channel reprocessing system
• 7” HD touch screen display
• Integrated or wireless barcode/RFID reader (optional)
• Integrated thermal printer

Variants

• LV-222/N: Washing counter in stainless steel, prepared for automation via ER-221/LV™ device. Available with or without pre-dilution basin.
• LV-222/I: Washing counter in stainless steel with integrated ER-221/LV™ device. Available with or without pre-dilution basin.

Customizations and options

• Customizable dimensions and number of washing/dilution basins
• Option to integrate barcode/RFID reader inside the basin
• Corian worktop version available

Technical specifications

• Model: LV-222™
• Function: Automated endoscope pre-washing with built-in ER-221 channel reprocessing system
• Construction: Work counters and main structure in stainless steel
• Optional top: Corian version available
• Standard dimensions (W×D×H): 200 × 95 × 85 cm (customizable)
• Integrated systems: ER-221 channel reprocessing
• Control/display: 7” HD touch screen
• Accessories/features: Chemical dilution basin, washing basin with channel connections, spray gun for water/air, foldable mixer tap, honeycomb sliding doors
• Automation/readout: Integrated or wireless barcode/RFID reader optional; integrated thermal printer
• Operation: Autonomous filling/draining and chemical dosing to avoid liquid recirculation and reduce self-contamination risk
