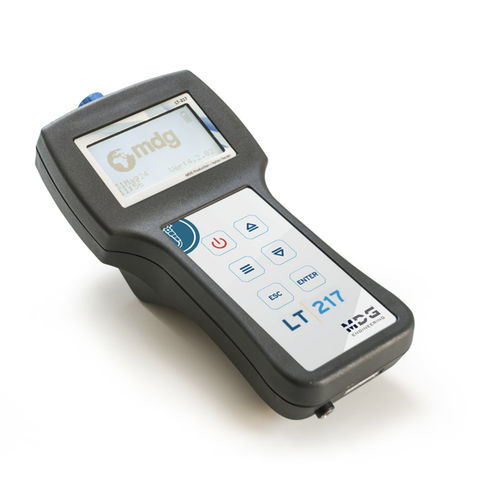

Endoscope leak tester LT-217B™

portableUSB

Product overview
LT-217B™ is a portable leak tester designed to verify the integrity of flexible endoscopes. Its patented detection system accurately identifies membrane leaks and provides information on O‑ring wear, internal channel integrity and possible twisting or perforations of biopsy channels. These inspections reduce the risk of fluid infiltration and help detect defects that could damage endoscopes during cleaning and sterilization procedures.

Included accessories

• Power supply for charging internal batteries
• Connection tube to the instrument
• Leak tester connector for the instrument
• User manual
• Interface cable to download test cycles to a USB pen drive
• Optical barcode reader for operator and instrument ID

LT-217B: Key features

• Instrument connector adaptable for each brand
• 3 standard cycles and 2 adjustable cycles
• Built-in optical barcode reader (optional version available without reader)
• Data transfer via USB pen drive
• Backlit LCD display for clear readout

Other models
Available version without optical barcode reader.

Technical specifications

• Portable leak tester for flexible endoscopes
• Patented membrane leak detection system
• Detects O‑ring wear, channel integrity, twisting and biopsy channel perforations
• Prevents infiltrations during cleaning and sterilization
• 3 standard + 2 adjustable test cycles
• Instrument connector adaptable to each brand
• Built-in/optional optical barcode reader for operator and instrument ID
• Data export via USB pen drive (interface cable included)
• Backlit LCD display
• Power supply for charging internal batteries (included)
• Connection tube and leak tester connector included
• Dimensions (WxDxH): 11.5 x 24 x 70 cm
