Electric surgical suction pump 25Dfor minor surgeryon casters
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Applications
- for minor surgery
- Configuration
- on casters
- Flow
20 l/min
(5.28 us gal/min)- Number of decibels
65 dB
Description
Overview
Key features
Technical specifications
Intended applications
Safety & maintenance

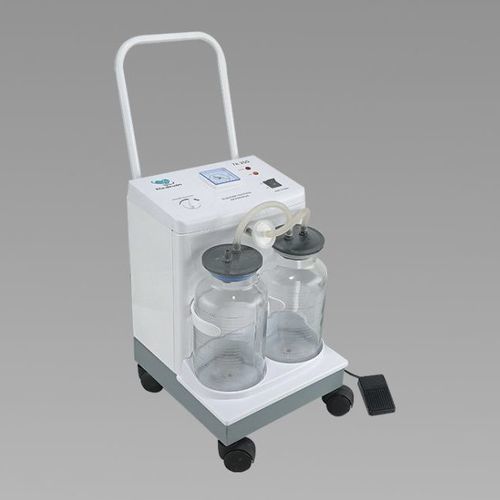

- Electric medical suction apparatus model 25D equipped with an oil-free piston pump for intermittent aspiration in clinical environments.
- Design includes two glass collection jars and silicone tubing for fluid evacuation.
Key features
- Oil-free piston pump: clean operation without oil or smoke; no daily oil addition required.
- Anti-backflow design: prevents liquid return when the unit stops.
- User controls: hand-switch and foot-switch for flexible operation.
- Adjustable negative pressure with overflow protection for safe suction control.
- Not suitable for continuous use in induced abortions. Not for use in flammable or explosive atmospheres.
Technical specifications
- Operation mode: Automatic
- Pump type: Piston pump (oil-free)
- Power source: Electric, AC 220V ±22V
- Frequency: 50 Hz ±1 Hz
- Number of glass jars: 2
- Noise: ≤ 65 dB(A)
- Max vacuum / Max negative pressure: ≈ 90 kPa / >0.09 MPa
- Pumping rate: ≥ 20 L/min
- Tube material: Silicone
- Power consumption: ≤ 180 VA
- Weight: 14 kg
- Duty cycle (continuity rate): 50%
Intended applications
- Clinical aspiration of bodily fluids in minor surgery, bedside care and emergency settings where intermittent suction is required.
Safety & maintenance
- Follow local medical device regulations for sterilization and disposal of collection jars and tubing.
- Regularly inspect silicone tubing and replace if damaged; follow manufacturer's maintenance schedule.
- Do not operate in flammable/explosive environments or with flammable fluids.
