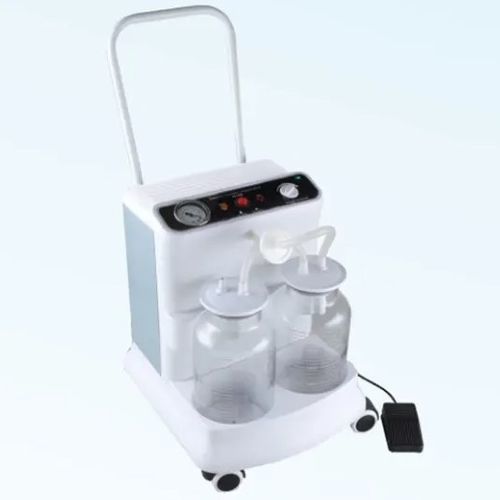

Electric surgical suction pump 7A 45D

for surgical drainage and debridementon casters

Product overview
Medical suction apparatus for aspiration procedures. Portable unit with an oil-free piston pump, two 2500 ml glass jars and selectable negative pressure. Designed for intermittent clinical use in hospitals and clinics.

Key features

• Oil-free piston pump: minimizes oil contamination and smoke
• Backflow prevention: no reverse flow when the unit stops
• Dual control: hand-switch and foot-switch for flexible operation
• Adjustable negative pressure with overflow protection mechanism
• Mounted on 4 wheels for easy positioning and mobility

Technical specifications

• Operation Mode: Automatic
• Pump Type: Piston Pump (oil-free)
• Voltage: AC 220V ± 22V
• Frequency: 50 Hz ± 1 Hz
• Number Of Wheels: 4
• Glass Jar Capacity: 2500 ml (each)
• Number Of Glass Jars: 2
• Noise: ≤ 65 dB(A)
• Weight: 14 kg
• Dimensions (L×W×H): 400×355×600 mm
• Max Negative Pressure Value: >0.09 MPa
• Max Vacuum: 90 kPa
• Tube Material: Silicone
• Power: ≤ 180 VA
• Pumping Rate: ≥ 20 L/min
• Reservoir Capacity: 2500 ml
• Max Continuous Working Time: 30 min (continuity rate 50%)
• Electrical Safety: Class I, Type B
• Power Source: Electric

Safety and limitations

• Not suitable for continuous use in induced abortions.
• Do not use in flammable or explosive atmospheres.
• Follow local medical device regulations and institutional protocols for use, cleaning and sterilization.
