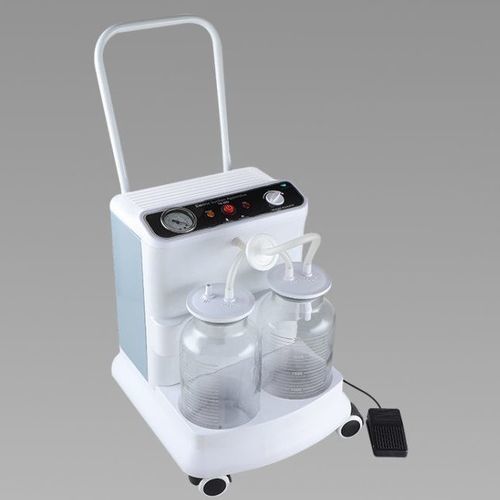

Electric surgical suction pump 35Don casters
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Configuration
- on casters
- Flow
20 l/min
(5.28 us gal/min)- Suction jar capacity
2.5 l
(0.7 gal)- Number of decibels
65 dB
Description
Product overview
Key features
Technical specifications
Applications and limitations
Maintenance and safety
- Automatic medical suction unit for aspiration of bodily fluids in clinical and outpatient settings; oil-free piston pump reduces risk of oil contamination. Continuity rate 50% — intended for intermittent use.
Key features
- Oil-free piston pump — no oil or smoke contamination
- No daily oil addition required for maintenance
- Safety design prevents excessive pressure during operation
- Anti-backflow mechanism to prevent fluid return when the unit stops
- Complete plastic panels with both hand-switch and foot-switch for flexible operation
- Stepless negative pressure adjustment and selectable vacuum range
- Overflow protection for reservoir jars
- Not suitable for continuous use in induced abortion procedures or in flammable/explosive environments
Technical specifications
- Operation Mode: Automatic
- Pump Type: Piston Pump (oil-free)
- Voltage: AC 220V ± 22V
- Frequency: 50 Hz ± 1 Hz
- Number of Glass Jars: 2 jars
- Noise: ≤ 65 dB (A)
- Max Vacuum: 90 KPa
- Tube Material: Silicone pipe
- Pumping Rate: ≥ 20 L/min
- Reservoir Capacity: 2500 ml (2.5 L)
- Power Source: Electric
- Max Negative Pressure Value: >0.09 MPa
- Weight: 14 kg
- Power Consumption: ≤ 180 VA
- Continuity Rate: 50%
Applications and limitations
- Intended for general surgical and clinical suction: hospitals, clinics, outpatient departments and emergency rooms for intermittent aspiration tasks
- Not suitable for continuous heavy-duty operation (continuity rate 50%) or for use in induced abortion continuous procedures
- Do not use in flammable or explosive atmospheres
Maintenance and safety
- Empty and clean glass jars after each use; inspect and replace silicone tubing regularly
- Verify overflow protection and functionality of hand/foot switches before each procedure
- Ensure correct mains supply (AC 220V ±22V) and proper grounding; follow local electrical safety regulations
- Observe noise specifications and do not operate beyond recommended duty cycle
