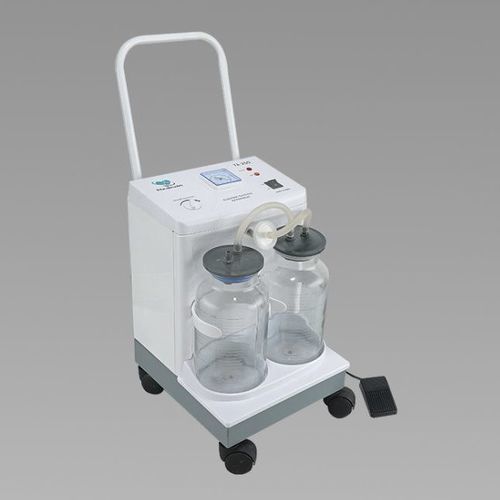

Electric surgical suction pump 7A 25Dfor surgical drainage and debridementon casters
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Applications
- for surgical drainage and debridement
- Configuration
- on casters
- Pressure
-0.9 bar
(-13.0534 psi)- Suction jar capacity
2.5 l
(0.7 gal)- Number of decibels
65 dB
Description
Product Overview
Technical Specifications
Intended Use
Safety and Maintenance
Included Accessories
- Oil-free piston pump design for clean, oil-free suction performance.
- No oil topping-up required for daily maintenance.
- Prevents backflow when the unit stops; selectable negative pressure with built-in overflow protection.
- Plastic housing panels with hand-switch and foot-switch for operation.
- Not intended for continuous use in induced abortion procedures or in flammable/explosive atmospheres.
Technical Specifications
- Operation Mode: Automatic
- Pump Type: Piston Pump (oil-free)
- Voltage: AC 220V
- Frequency: 50 Hz ± 1 Hz
- Number of Wheels: 4
- Glass Jar Capacity: 2500 ml
- Number of Glass Jars: 2
- Reservoir Capacity: 2500 ml
- Max Vacuum: 90 kPa
- Max Negative Pressure Value: >0.09 MPa
- Dimensions (LxWxH): 400 x 355 x 600 mm
- Weight: 14 kg
- Tube Material: Silicone
- Max Continuous Working Time: 30 min
- Continuity Rate: 50%
- Electrical Classification: Class I, Type B
- Power Source: Electric
- Pumping Rate: Not specified
- Noise: Not specified
Intended Use
- Medical suction of bodily fluids in surgical and emergency settings.
- Suitable for hospitals, clinics and mobile medical units.
Safety and Maintenance
- Do not use in environments with flammable or explosive vapors.
- Follow applicable local regulations for electrical medical devices and grounding.
- Inspect and replace silicone tubing and glass jars regularly; ensure overflow protection is functional.
Included Accessories
- Two glass jars (2500 ml each)
- Silicone suction tubing
- Hand-switch and foot-switch
