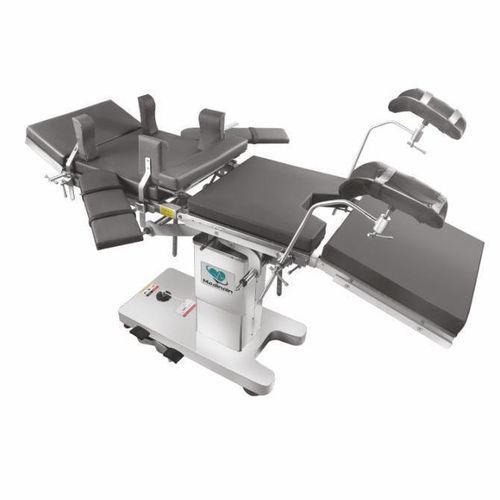

Universal operating table ME-600Hhydraulicmechanicaltilting
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- hydraulic, mechanical
- Features
- adjustable height, tilting
- Components
- with legrest, with armrest, with headrest
- Number of sections
- 5-section
- Material
- stainless steel
- Total length
199 cm
(78.3 in)- Total width
53.5 cm
(21.1 in)- Max supported weight
200 kg
(440.9 lb)
Description
Product description
Optional Features
Specifications (table)
Top Dimension: L 1990mm x W 535mm
Height Adjustment: without Mattress: 750mm-1000mm
Trendelenburg / Reverse: 25° / 25°
Lateral Tilt: 25° / 25°
Kidney Elevator: 130 mm
Back Rest (up / down): 90° / 15°
Leg Rest (up / down): 10° / 90°
Head Rest (up / down): 45° / 90°
Patient Weight Capacity: 200 kg
Technical specifications
- Five-section stainless steel table top equipped with removable, antistatic mattresses.
- Position adjustments performed via mechanical linkages for each section.
- Hardened stainless steel shell providing an easy-to-clean, hygienic surface.
- Precision hydraulic system with single-lever action operated by a foot pedal.
- Integrated kidney bridge and large perineal cut-out for drainage.
- Five-section top provides anatomical adaptation to the patient body.
- Manual floor locking.
Optional Features
- Available in split-leg configuration.
- Also available with R-base frame.
Specifications (table)
Top Dimension: L 1990mm x W 535mm
Height Adjustment: without Mattress: 750mm-1000mm
Trendelenburg / Reverse: 25° / 25°
Lateral Tilt: 25° / 25°
Kidney Elevator: 130 mm
Back Rest (up / down): 90° / 15°
Leg Rest (up / down): 10° / 90°
Head Rest (up / down): 45° / 90°
Patient Weight Capacity: 200 kg
Technical specifications
- Top Dimension: L 1990mm x W 535mm
- Height Adjustment: without Mattress: 750mm-1000mm
- Trendelenburg / Reverse: 25° / 25°
- Lateral Tilt: 25° / 25°
- Kidney Elevator: 130 mm
- Back Rest (up / down): 90° / 15°
- Leg Rest (up / down): 10° / 90°
- Head Rest (up / down): 45° / 90°
- Patient Weight Capacity: 200 kg
