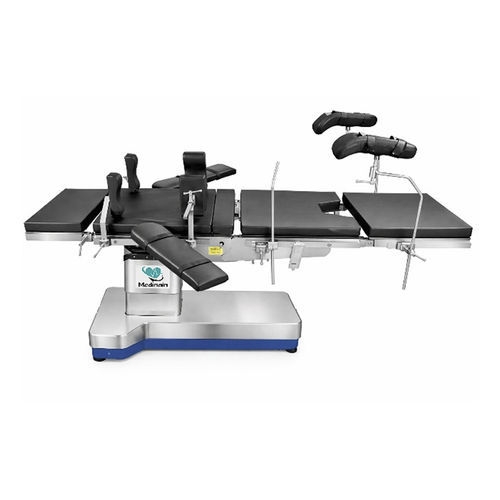

Universal operating table ME-1000Eelectrictiltingmobile
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Features
- adjustable height, tilting, mobile, radiolucent, reclining
- Components
- with legrest, with armrest, with headrest
- Number of sections
- 5-section
- Power source
- 220V / 50Hz
- Material
- stainless steel
- Total length
190 cm
(74.8 in)- Total width
53.5 cm
(21.1 in)- Max supported weight
200 kg
(440.9 lb)
Description
Product overview
Key features
Optional features
Technical specifications
Materials and compliance
- Fully electric operating table with five sections and a radio-translucent tabletop supported by eccentric pillars and a rigid base.
- Interchangeable head and leg sections (manual).
- All positions adjusted via cable remote control.
- Integrated kidney bridge (kidney elevator).
- Major components fabricated from 304 stainless steel.
- Heavy-duty castor wheels with locking function.
Key features
- Five-section configuration suitable for a wide range of surgical procedures.
- Radio-translucent tabletop for intraoperative imaging.
- Height and tilt functions including Trendelenburg, reverse Trendelenburg and lateral tilt.
- Adjustable back, leg and head rests with wide angular ranges.
- Patient capacity 200 kg (options for >200 kg available on request).
Optional features
- Available in R-base or H-base variants.
- Manual override control.
- Split leg section.
- Customizable patient weight capacity above 200 kg.
Technical specifications
- Top dimension: L 1900 mm × W 535 mm
- Height adjustment (without mattress): 750 mm – 1000 mm
- Trendelenburg / Reverse: 25° / 23°
- Lateral tilt: 20° / 20°
- Kidney elevator (bridge): 130 mm
- Back rest (up / down): 90° / 30°
- Leg rest (up / down): 10° / 90°
- Head rest (up / down): 45° / 90°
- Mains voltage: AC 220 V ±10% 50 Hz
- Patient weight capacity: 200 kg (above 200 kg customizable)
Materials and compliance
- Main structural parts: 304 stainless steel.
- Tabletop: radiolucent material suitable for imaging.
- Castors: heavy-duty with central locking.
- Designed for operating room use; electrical safety and EMC compliance to be confirmed per applicable standards and customer requirements.
