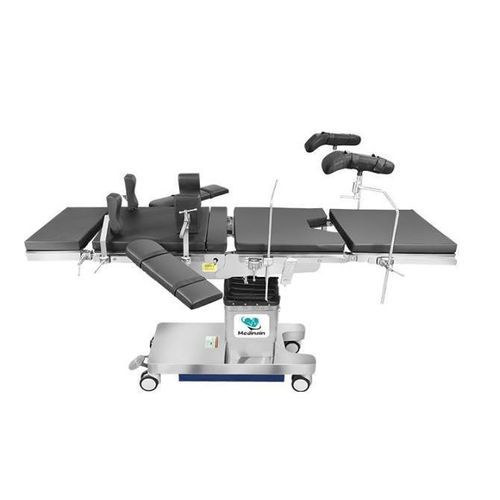

Universal operating table ME-1500Eelectrictiltingmobile
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Features
- adjustable height, tilting, mobile, radiolucent, reclining
- Components
- with legrest, with armrest, with headrest, with sliding tabletop
- Number of sections
- 5-section
- Power source
- 220V / 50Hz
- Material
- stainless steel
- Total length
199 cm
(78.3 in)- Total width
53.5 cm
(21.1 in)- Max supported weight
200 kg
(440.9 lb)
Description
Product Details
Optional Features
Technical Details (table)
Top dimension: L 1990 mm x W 535 mm
Height adjustment (without mattress): 750–1000 mm
Trendelenburg / Reverse: 25° / 23°
Lateral tilt: 20° / 20°
Kidney elevator: 130 mm
Back rest (up / down): 90° / 20°
Leg rest (up / down): 10° / 90°
Head rest (up / down): 45° / 90°
Battery backup: 2–3 hours (optional)
Mains voltage: AC 220V ±10% 50Hz
Patient weight capacity: 200 kg
Flex / Reflex: 230° / 110°
Specifications
- Fully electrically operated operating table with five sections, radiolucent tabletop supported by eccentric pillars and a sturdy base.
- Interchangeable head and leg sections (manual).
- All positions operated via wired remote control; two handsets supplied and an additional control panel mounted on the tabletop for redundancy.
- Handset includes dual memory preset function.
- Battery-backup indicator on the control panel; optional battery backup 2–3 hours.
- Integrated kidney bridge.
- Major components manufactured in 304 stainless steel.
- Wheel locking controlled by remote.
- Top-slide function.
Optional Features
- Split leg section
- Top-slide
- Castor wheels
- Floor locking with remote
- Manual override
Technical Details (table)
Top dimension: L 1990 mm x W 535 mm
Height adjustment (without mattress): 750–1000 mm
Trendelenburg / Reverse: 25° / 23°
Lateral tilt: 20° / 20°
Kidney elevator: 130 mm
Back rest (up / down): 90° / 20°
Leg rest (up / down): 10° / 90°
Head rest (up / down): 45° / 90°
Battery backup: 2–3 hours (optional)
Mains voltage: AC 220V ±10% 50Hz
Patient weight capacity: 200 kg
Flex / Reflex: 230° / 110°
Specifications
- Top dimension: L 1990 mm x W 535 mm
- Height adjustment (without mattress): 750–1000 mm
- Trendelenburg / Reverse: 25° / 23°
- Lateral tilt: 20° / 20°
- Kidney elevator: 130 mm
- Back rest (up / down): 90° / 20°
- Leg rest (up / down): 10° / 90°
- Head rest (up / down): 45° / 90°
- Battery backup: 2–3 hours (optional)
- Mains voltage: AC 220V ±10% 50Hz
- Patient weight capacity: 200 kg
- Flex / Reflex: 230° / 110°
