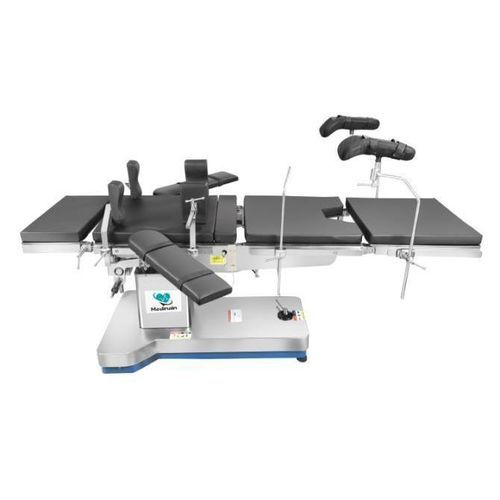

Universal operating table ME-800Eradiologyhydraulicmechanical
Add to favorites
Compare this product
Characteristics
- Applications
- universal, radiology
- Operation
- hydraulic, mechanical
- Features
- adjustable height, tilting, radiolucent, reclining
- Components
- with legrest, with armrest, with headrest
- Number of sections
- 5-section
- Material
- stainless steel
- Total length
190 cm
(74.8 in)- Total width
52 cm
(20.5 in)- Max supported weight
200 kg
(440.9 lb)
Description
Overview The ME-800E operating table is a hydraulic surgical table designed for routine and advanced procedures. It provides smooth, controlled vertical movement, tilt and positioning while allowing intraoperative imaging thanks to C‑Arm compatibility. The table supports modular configuration for varied surgical specialties and patient positioning.
Operation and compatibility The ME-800E can be operated hydraulically and mechanically to suit different theatre workflows. An eccentric base and pillar arrangement ensures unobstructed C‑Arm movement. Head and leg sections are interchangeable and detachable to accommodate a range of procedures and patient anatomies. An integrated kidney bridge is provided for specific surgical positions.
Design and materials The table top is a five-section, radio-translucent design to permit X‑ray imaging without repositioning the patient. Base and covers are stainless steel for ease of cleaning and infection control. The table’s mechanics provide smooth, stepless articulation for precise patient positioning during surgery.
Key Features
Optional Features
Technical Specifications
Operation and compatibility The ME-800E can be operated hydraulically and mechanically to suit different theatre workflows. An eccentric base and pillar arrangement ensures unobstructed C‑Arm movement. Head and leg sections are interchangeable and detachable to accommodate a range of procedures and patient anatomies. An integrated kidney bridge is provided for specific surgical positions.
Design and materials The table top is a five-section, radio-translucent design to permit X‑ray imaging without repositioning the patient. Base and covers are stainless steel for ease of cleaning and infection control. The table’s mechanics provide smooth, stepless articulation for precise patient positioning during surgery.
Key Features
- Hydraulic and mechanical operation
- Eccentric base for trouble-free C‑Arm movement
- Interchangeable head and leg sections
- Eccentric pillars and stainless fittings
- Detachable head, leg and pelvic sections
- Integrated kidney bridge
- Five-section radio-translucent top
- Stainless steel base and cover
- Smooth, stepless articulation for precise positioning
Optional Features
- Split-leg configuration available
- T-base configuration available
- H-base configuration available
Technical Specifications
- Top dimension: L 1900 mm × W 520 mm
- Height adjustment: 762 mm – 1000 mm
- Trendelenburg / Reverse: 30° / 25°
- Lateral tilt: ±20°
- Kidney elevator: 150 mm
- Back rest (up / down): 80° / 25°
- Leg rest (up / down): 15° / 90°
- Head rest (up / down): 20° / 60°
- Patient weight capacity: 200 kg
- Hydraulic and mechanical operation
- Eccentric base for C‑Arm mobility
- Interchangeable & detachable head, leg and pelvic sections
- Five-section radio-translucent top
- Stainless steel base and cover
